MIcroMeter HeAds

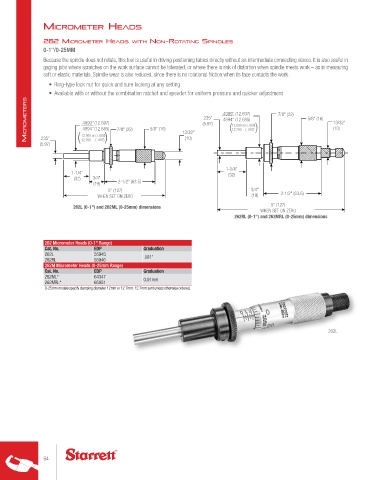

262 MIcroMeter HeAds WItH non-rotAtInG spIndles
0-1"/0-25MM
Because the spindle does not rotate, this tool is useful in driving positioning tables directly without an intermediate connecting device. It is also useful in
gaging jobs where scratches on the work surface cannot be tolerated, or where there is risk of distortion when spindle meets work – as in measuring
soft or elastic materials. Spindle wear is also reduced, since there is no rotational friction when its face contacts the work.
• Ring-type lock nut for quick and sure locking at any setting
• Available with or without the combination ratchet and speeder for uniform pressure and quicker adjustment
MicroMeters .4999" (12.697) 7/8" (22) 5/8" (16) .235" .4999" (12.697) 7/8" (22) 5/8" (16) 13/32"

.4994" (12.685)
(5.97)
( )
12.000 or (+.000)
(10)
.4994" (12.685)
(-.007)
12.700
12.000 or (+.000)
(10)
.235"
12.700
(-.007)
(5.97) ( ) 13/32"
1-1/4"
1-1/4" (32)
(32) 3/4"
(19) 2-1/2" (63.5)
5" (127) 3/4"
WHEN SET ON ZERO (19) 2-1/2" (63.5)
262L (0-1") and 262ML (0-25mm) dimensions 5" (127)
WHEN SET ON ZERO
262RL (0-1") and 262MRL (0-25mm) dimensions

262 Micrometer Heads (0-1" Range)
Cat. No. EDP Graduation
262L 55945 .001"
262RL 55946
262M Micrometer Heads (0-25mm Range)
Cat. No. EDP Graduation
262ML* 64347
262MRL* 65051 0.01mm
0-25mm models specify clamping diameter 12mm or 12.7mm. 12.7mm sent unless otherwise ordered.

262L

64
