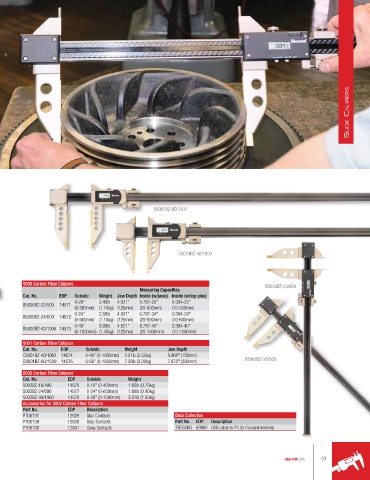

Slide CaliperS

D5001BZ-60/1500

C5001BZ-40/1000

5000 Carbon Fiber Calipers B5000BZ-24/600
Measuring Capacities
Cat. No. EDP Outside Weight Jaw Depth Inside (w/jaws) Inside (w/top pins)
0-20" 2.43lb 4.921" 0.787-20" 0.394-20"
B5000BZ-20/500 14571
(0-500mm) (1.10kg) (125mm) (20-500mm) (10-500mm)
0-24" 2.56lb 4.921" 0.787-24" 0.394-24"
B5000BZ-24/600 14572
(0-600mm) (1.16kg) (125mm) (20-600mm) (10-600mm)
0-40" 3.09lb 4.921" 0.787-40" 0.394-40"
B5000BZ-40/1000 14573
(0-1000mm) (1.40kg) (125mm) (20-1000mm) (10-1000mm)
5001 Carbon Fiber Calipers
Cat. No. EDP Outside Weight Jaw Depth
C5001BZ-40/1000 14574 0-40" (0-1000mm) 5.51lb (2.50kg) 5.906" (150mm)
D5001BZ-60/1500 14575 0-60" (0-1500mm) 7.28lb (3.30kg) 7.875" (200mm) B5000BZ-20/500
5002 Carbon Fiber Calipers
Cat. No. EDP Outside Weight
5002BZ-16/400 14576 0-16" (0-400mm) 1.65lb (0.75kg)
5002BZ-24/600 14577 0-24" (0-600mm) 1.98lb (0.90kg)
5002BZ-40/1000 14578 0-40" (0-1000mm) 3.31lb (1.50kg)
Accessories for 5002 Carbon Fiber Calipers
Part No. EDP Description
PT06137 12829 Disc Contacts Data Collection
PT06138 12830 Step Contacts Part No. EDP Description
PT06139 12831 Cone Contacts 797SCKB 69890 USB cable to PC (In focused window)

starrett.com 93
