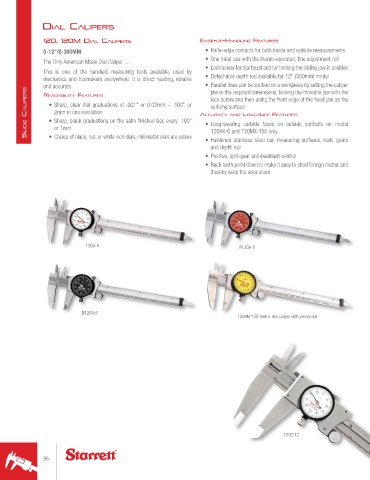

dIAl cAlIpers

120, 120M dIAl cAlIpers eAse-of-HAndlInG feAtures
0-12"/0-300MM • Knife-edge contacts for both inside and outside measurements
The Only American Made Dial Caliper … • One hand use with the thumb-operated, fine adjustment roll
• Lock screw for dial bezel and for holding the sliding jaw in position
This is one of the handiest measuring tools available, used by
mechanics and toolmakers everywhere. It is direct reading, reliable • Detachable depth rod available for 12" (300mm) model
and accurate. • Parallel lines can be scribed on a workpiece by setting the caliper
Slide CaliperS • Sharp, clear dial graduations of .001" or 0.02mm – .100" or AccurAcy And lonG-lIfe feAtures
jaw to the required dimensions, locking the movable jaw with the
reAdAbIlIty feAtures
lock screw and then using the front edge of the fixed jaw as the
scribing surface
2mm in one revolution
• Sharp, black graduations on the satin finished bar, every .100"
• Long-wearing carbide faces on outside contacts on model
or 1mm
120AX-6 and 120MX-150 only
• Choice of black, red, or white inch dials; millimeter dials are yellow
• Hardened stainless steel bar, measuring surfaces, rack, gears
and depth rod
• Positive, split-gear anti-backlash control
• Rack teeth point down to make it easy to shed foreign matter and
thereby keep the area clean

120A-6 R120A-6

B120A-6
120AM-150 metric dial caliper wtih yellow dial

120Z-12
