Page 95 - catalgo33

Slide CaliperS

elecronIc cAlIpers

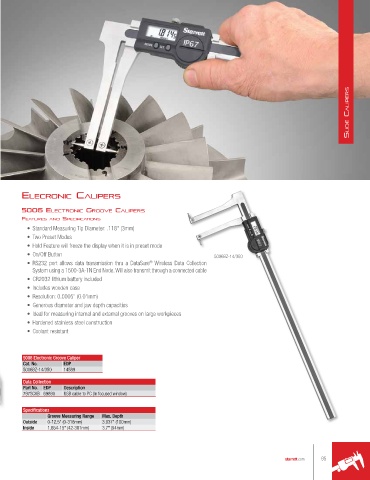

5006 electronIc Groove cAlIpers
feAtures And specIfIcAtIons
• Standard Measuring Tip Diameter: .118" (3mm)
• Two Preset Modes
• Hold Feature will freeze the display when it is in preset mode
• On/Off Button 5006BZ-14/350
• RS232 port allows data transmission thru a DataSure Wireless Data Collection
®
System using a 1500-3A-1N End Node. Will also transmit through a connected cable
• CR2032 lithium battery included
• Includes wooden case
• Resolution: 0.0005" (0.01mm)
• Generous diameter and jaw depth capacities
• Ideal for measuring internal and external grooves on large workpieces
• Hardened stainless steel construction
• Coolant resistant

5006 Electronic Groove Caliper
Cat. No. EDP
5006BZ-14/350 14589
Data Collection
Part No. EDP Description
797SCKB 69890 USB cable to PC (In focused window)

Specifications
Groove Measuring Range Max. Depth
Outside 0-12.5" (0-318mm) 3.937" (100mm)
Inside 1.654-15" (42-381mm) 3.7" (94mm)

starrett.com 95
