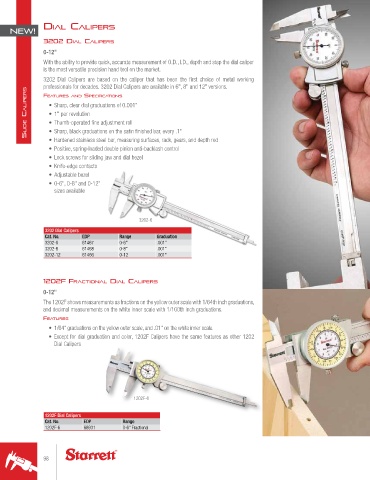

Page 98 - catalgo33

dIAl cAlIpers
New!
3202 dIAl cAlIpers
0-12"
With the ability to provide quick, accurate measurement of O.D., I.D., depth and step the dial caliper
is the most versatile precision hand tool on the market.
3202 Dial Calipers are based on the caliper that has been the first choice of metal working
professionals for decades. 3202 Dial Calipers are available in 6", 8" and 12" versions.
Slide CaliperS • Sharp, clear dial graduations of 0.001"
feAtures And specIfIcAtIons

• 1" per revolution
• Thumb-operated fine adjustment roll
• Sharp, black graduations on the satin finished bar, every .1"
• Hardened stainless steel bar, measuring surfaces, rack, gears, and depth rod
• Positive, spring-loaded double pinion anti-backlash control
• Lock screws for sliding jaw and dial bezel
• Knife-edge contacts
• Adjustable bezel
• 0-6", 0-8" and 0-12"
sizes available

3202-6
3202 Dial Calipers
Cat. No. EDP Range Graduation
3202-6 61467 0-6" .001"
3202-8 61468 0-8" .001"
3202-12 61466 0-12 .001"

1202f frActIonAl dIAl cAlIpers
0-12"
The 1202F shows measurements as fractions on the yellow outer scale with 1/64th inch graduations,
and decimal measurements on the white inner scale with 1/100th inch graduations.
feAtures
• 1/64" graduations on the yellow outer scale, and .01" on the white inner scale.
• Except for dial graduation and color, 1202F Calipers have the same features as other 1202
Dial Calipers

1202F-6

1202F Dial Calipers
Cat. No. EDP Range
1202F-6 68931 0-6" Fractional

98
