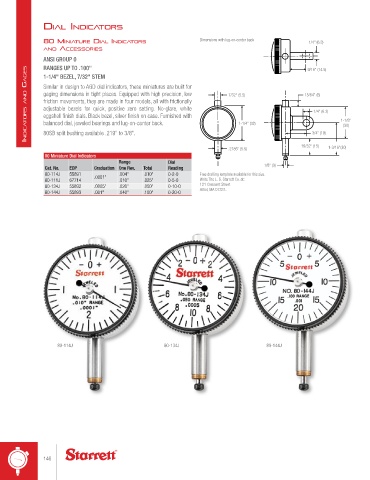

dIAl IndIcAtors

80 MInIAture dIAl IndIcAtors Dimensions with lug-on-center back 1/4" (6.3)
And AccessorIes
ANSI GROUP 0 9/16" (14.5)
RANGES UP TO .100"
IndIca tors and GaGes Similar in design to AGD dial indicators, these miniatures are built for 7/32" (5.5) 15/64" (6) 1-1/8"
1-1/4" BEZEL, 7/32" STEM

gaging dimensions in tight places. Equipped with high precision, low
friction movements, they are made in four models, all with frictionally
adjustable bezels for quick, positive zero setting. No-glare, white
1/4" (6.3)
eggshell finish dials. Black bezel, silver finish on case. Furnished with
balanced dial, jeweled bearings and lug-on-center back.
1-1/4" (32)
80SB split bushing available .219" to 3/8".
3/4" (19)
19/32" (15) (30)
.2185" (5.5) 1-3/16"(30)
80 Miniature Dial Indicators
Range Dial
Cat. No. EDP Graduation One Rev. Total Reading 1/8" (3)
80-114J 55891 .0001" .004" .010" 0-2-0 Free drafting template available for this size.
80-111J 67714 .010" .025" 0-5-0 Write The L. S. Starrett Co. at:
80-134J 55892 .0005" .020" .050" 0-10-0 121 Crescent Street
Athol, MA 01331.
80-144J 55893 .001" .040" .100" 0-20-0

80-114J 80-134J 80-144J
