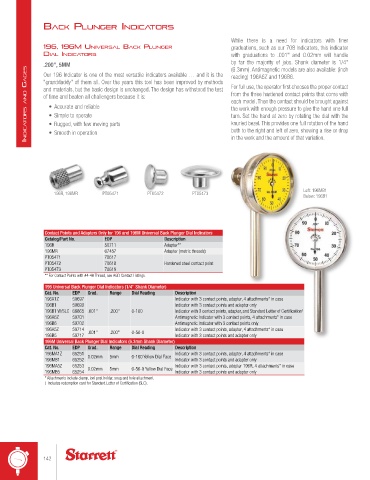

bAcK plunGer IndIcAtors

While there is a need for indicators with finer
196, 196M unIversAl bAcK plunGer graduations, such as our 708 Indicators, this indicator
dIAl IndIcAtors with graduations to .001" and 0.02mm will handle
.200", 5MM by far the majority of jobs. Shank diameter is 1/4"
IndIca tors and GaGes and materials, but the basic design is unchanged. The design has withstood the test For full use, the operator first chooses the proper contact
(6.3mm). Antimagnetic models are also available: (inch
Our 196 Indicator is one of the most versatile indicators available … and it is the
reading) 196A6Z and 196B6.
"granddaddy" of them all. Over the years this tool has been improved by methods
from the three hardened contact points that come with
of time and beaten all challengers because it is:
each model. Then the contact should be brought against
• Accurate and reliable
the work with enough pressure to give the hand one full
• Simple to operate
turn. Set the hand at zero by rotating the dial with the
knurled bezel. This provides one full rotation of the hand
• Rugged, with few moving parts
both to the right and left of zero, showing a rise or drop
• Smooth in operation
in the work and the amount of that variation.

Left: 196MB1
196R, 196MR PT05471 PT05472 PT05473
Below: 196B1

Contact Points and Adapters Only for 196 and 196M Universal Back Plunger Dial Indicators
Catalog/Part No. EDP Description
196R 50711 Adapter**
196MR 67457 Adapter (metric threads)
PT05471 70617
PT05472 70618 Hardened steel contact point
PT05473 70619
** For Contact Points with #4-48 Thread, see AGD Contact Listings.
196 Universal Back Plunger Dial Indicators (1/4" Shank Diameter)
Cat. No. EDP Grad. Range Dial Reading Description
196A1Z 50697 Indicator with 3 contact points, adapter, 4 attachments* in case
196B1 50699 Indicator with 3 contact points and adapter only
196B1 W/SLC 66865 .001" .200" 0-100 Indicator with 3 contact points, adapter, and Standard Letter of Certification †
196A6Z 50701 Antimagnetic Indicator with 3 contact points, 4 attachments* in case
196B6 50702 Antimagnetic Indicator with 3 contact points only
196A5Z 50714 .001" .200" 0-50-0 Indicator with 3 contact points, adapter, 4 attachments* in case
196B5 50717 Indicator with 3 contact points and adapter only
196M Universal Back Plunger Dial Indicators (6.3mm Shank Diameter)
Cat. No. EDP Grad. Range Dial Reading Description
196MA1Z 65251 0.02mm 5mm 0-100 Yellow Dial Face Indicator with 3 contact points, adapter, 4 attachments* in case
196MB1 65252 Indicator with 3 contact points and adapter only
196MA5Z 65253 0.02mm 5mm 0-50-0 Yellow Dial Face Indicator with 3 contact points, adapter 196R, 4 attachments* in case
196MB5 65254 Indicator with 3 contact points and adapter only
* Attachments include clamp, tool post holder, snug and hole attachment.
† Includes redemption card for Standard Letter of Certification (SLC).
