test IndIcAtors

®

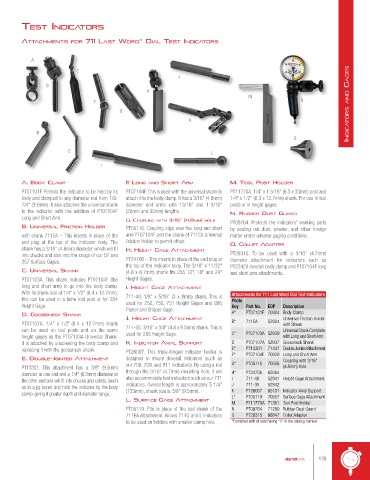

AttAcHMents for 711 lAst Word dIAl test IndIcAtors

A
C
J
B
H
M
F N IndIca tors and GaGes
G
K

D
O

E L

I

A. body clAMp f. lonG And sHort ArM M. tool post Holder
PT07101F Permits the indicator to be held by its PT07104F. This is used with the universal shank to PT11770A. 1/4" x 1 5/16" (6.3 x 33mm) post and
body and clamped to any diameter rod from 1/8- attach it to the body clamp. It has a 3/16" (4.8mm) 1/4" x 1/2" (6.3 x 12.7mm) shank. For use in tool
1/4" (3-6mm). It also attaches the universal shank diameter and arms with 13/16" and 1-3/16" posts or in height gages
to the indicator with the addition of PT07104F (20mm and 30mm) lengths. n. rubber dust GuArd
Long and Short Arm.
G. couplInG WItH 3/16" (4.8MM) Hole PT09764. Protects the indicators' working parts
b. unIversAl frIctIon Holder PT05116. Coupling slips over the long and short by sealing out dust, powder, and other foreign
with shank 711EA – This inserts in place of the arm PT07104F and the shank of 711EA Universal matter under adverse gaging conditions.
end plug at the top of the indicator body. The Friction Holder to permit offset. o. collet AdApter
shank has a 3/16" (4.8mm) diameter which will fit H. HeIGHt GAGe AttAcHMent
into chucks and also into the snugs of our 57 and PT28315. To be used with a 3/16" (4.7mm)
257 Surface Gages. PT24706 – This inserts in place of the end plug at diameter attachment for indicators such as
the top of the indicator body. The 3/16" x 11/32" PT22429 dovetail body clamp and PT07104F long
c. unIversAl sHAnK (4.8 x 8.7mm) shank fits 255 12", 18" and 24" and short arm attachments.
PT07103A. This shank includes PT07104F (the Height Gages.
long and short arm) to go into the body clamp. I. HeIGHt GAGe AttAcHMent
With its shank size of 1/4" x 1/2" (6.4 x 12.7mm), Attachments for 711 Last Word Dial Test Indicators
this can be used in a lathe tool post or for 254 711-49. 1/8" x 5/16" (3 x 8mm) shank. This is Photo
Height Gage. used for 250, 750, 751 Height Gages and 995 Key Part No. EDP Description
Planer and Shaper Gage.
d. GoosenecK sHAnK A* PT07101F 70924 Body Clamp
j. HeIGHt GAGe AttAcHMent Universal Friction Holder
PT07107A. 1/4" x 1/2" (6.4 x 12.7mm) shank B* 711EA 52924 with Shank
can be used on tool posts and on the same 711-35. 3/16" x 3/8" (4.8 x 9.5mm) shank. This is Universal Shank Complete
height gages as the PT07103A Universal Shank. used for 255 Height Gage. C* PT07103A 52939 with Long and Short Arm
It is attached by unscrewing the body clamp and K. IndIcAtor AxIAl support D PT07107A 52937 Gooseneck Shank
replacing it with the gooseneck shank. PT26007. This triple-hinged indicator holder is E* PT13301 71441 Double-Jointed Attachment
e. double-joInted AttAcHMent designed to mount dovetail indicators (such as F* PT07104F 70929 Long and Short Arm
Coupling with 3/16"
PT13301. This attachment has a 3/8" (9.5mm) our 708, 709, and 811 indicators). By using a rod G* PT05116 70556 (4.8mm) Hole
diameter at one end and a 1/4" (6.3mm) diameter at through the 3/16" (4.7mm) mounting hole, it will H* PT24706 65064
the other end and will fit into chucks and collets, (such also accommodate test indicators such as our 711 I 711-49 52941 Height Gage Attachment
as in a jig borer) and hold the indicator by the body indicators. Overall length is approximately 5 1/4" J 711-35 52942
clamp, giving it greater depth and diameter range. (133mm), shank size is 3/8" (9.5mm). K PT26007 65101 Indicator Axial Support
l. surfAce GAGe AttAcHMent L* PT05119 70557 Surface Gage Attachment
M PT11770A 71361 Tool Post Holder
PT05119. Fits in place of the ball shank of the N PT09764 71290 Rubber Dust Guard
711EA Attachment. Allows 711G and L Indicators O PT28315 68847 Collet Adapter
to be used on holders with smaller clamp hole. *Furnished with all sets having "C" in the catalog number

starrett.com 139
