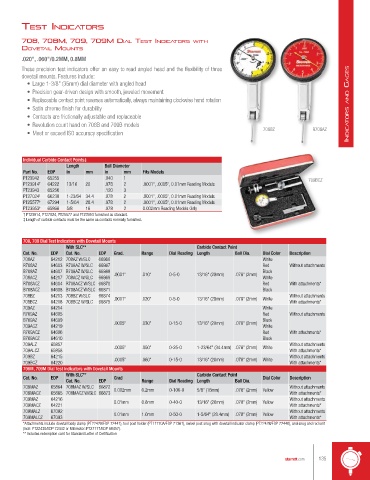

Page 135 - catalgo33

test IndIcAtors

708, 708M, 709, 709M dIAl test IndIcAtors WItH
dovetAIl Mounts
.020", .060"/0.2MM, 0.8MM

These precision test indicators offer an easy to read angled head and the flexibility of three
dovetail mounts. Features include:
• Large 1-3/8" (35mm) dial diameter with angled head
• Precision gear-driven design with smooth, jeweled movement
• Replaceable contact point reverses automatically, always maintaining clockwise hand rotation
• Satin chrome finish for durability IndIca tors and GaGes
• Contacts are frictionally adjustable and replaceable
• Revolution count hand on 708B and 709B models
708BZ R708AZ
• Meet or exceed ISO accuracy specification

Individual Carbide Contact Points‡
Length Ball Diameter
Part No. EDP in mm in mm Fits Models
PT23942 65255 .040 1 709BCZ
PT23914 † 64222 13/16 20 .078 2 .0001", .0005", 0.01mm Reading Models
PT23943 65256 .120 3
PT27024 † 66239 1-23/64 34.4 .078 2 .0001", .0005", 0.01mm Reading Models
PT25577 † 67294 1-5/64 28.4 .078 2 .0001", .0005", 0.01mm Reading Models
PT23953 † 65868 5/8 16 .078 2 0.002mm Reading Models Only
† PT23914, PT27024, PT25577 and PT23953 furnished as standard.
‡ Length of carbide contacts must be the same as contacts normally furnished.

708, 709 Dial Test Indicators with Dovetail Mounts
With SLC** Carbide Contact Point
Cat. No. EDP Cat. No. EDP Grad. Range Dial Reading Length Ball Dia. Dial Color Description
708AZ 64212 708AZ W/SLC 66866 White
R708AZ 64603 R708AZ W/SLC 66867 Red Without attachments
B708AZ 64607 B708AZ W/SLC 66868 .0001" .010" 0-5-0 13/16" (20mm) .078" (2mm) Black
708ACZ 64217 708ACZ W/SLC 66869 White
R708ACZ 64604 R708ACZ W/SLC 66870 Red With attachments*
B708ACZ 64608 B708ACZ W/SLC 66871 Black
708BZ 64213 708BZ W/SLC 66874 .0001" .020" 0-5-0 13/16" (20mm) .078" (2mm) White Without attachments
708BCZ 64218 708BCZ W/SLC 66875 With attachments*
709AZ 64214 White
R709AZ 64605 Red Without attachments
B709AZ 64609 .0005" .030" 0-15-0 13/16" (20mm) .078" (2mm) Black
709ACZ 64219 White
R709ACZ 64606 Red With attachments*
B709ACZ 64610 Black
709ALZ 65857 .0005" .050" 0-25-0 1-23/64" (34.4mm) .078" (2mm) White Without attachments
709ALCZ 65858 With attachments*
709BZ 64215 .0005" .060" 0-15-0 13/16" (20mm) .078" (2mm) White Without attachments
709BCZ 64220 With attachments*
708M, 709M Dial Test Indicators with Dovetail Mounts
With SLC** Carbide Contact Point
Cat. No. EDP Grad Dial Color Description
Cat. No. EDP Range Dial Reading Length Ball Dia.
708MAZ 65864 708MAZ W/SLC 66872 0.002mm 0.2mm 0-100-0 5/8" (16mm) .078" (2mm) Yellow Without attachments
708MACZ 65865 708MACZ W/SLC 66873 With attachments*
709MAZ 64216 0.01mm 0.8mm 0-40-0 13/16" (20mm) .078" (2mm) Yellow Without attachments
709MACZ 64221 With attachments*
709MALZ 67092 0.01mm 1.0mm 0-50-0 1-5/64" (28.4mm) .078" (2mm) Yellow Without attachments
709MALCZ 67093 With attachments*
*Attachments include dovetail body clamp (PT22429/EDP 72441), tool post holder (PT11770A/EDP 71361), swivel post snug with dovetail indicator clamp (PT22428/EDP 72440), and snug and rod unit
(Inch: PT22430/EDP 72442 or Millimeter: PT27171/EDP 66457).
** Includes redemption card for Standard Letter of Certification
