test IndIcAtors

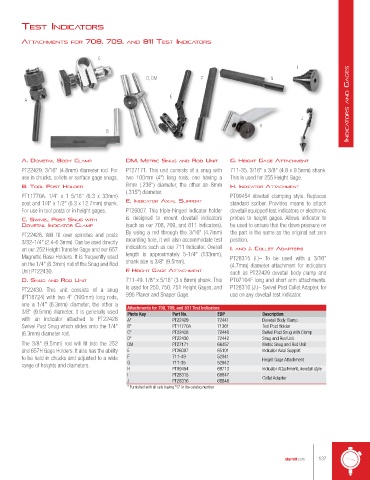

AttAcHMents for 708, 709, And 811 test IndIcAtors

C
I
IndIca tors and GaGes
D, DM F G

E
A

J
H
B

A. dovetAIl body clAMp dM. MetrIc snuG And rod unIt G. HeIGHt GAGe AttAcHMent
PT22429. 3/16" (4.8mm) diameter rod. For PT27171. This unit consists of a snug with 711-35. 3/16" x 3/8" (4.8 x 9.5mm) shank.
use in chucks, collets or surface gage snugs. two 100mm (4") long rods, one having a This is used for 255 Height Gage.
6mm (.236") diameter, the other an 8mm
b. tool post Holder H. IndIcAtor AttAcHMent
(.315") diameter.
PT11770A. 1/4" x 1 5/16" (6.3 x 33mm) PT99454 dovetail clamping style. Replaces
post and 1/4" x 1/2" (6.3 x 12.7mm) shank. e. IndIcAtor AxIAl support standard scriber. Provides means to attach
For use in tool posts or in height gages. PT26007. This triple-hinged indicator holder dovetail equipped test indicators or electronic
c. sWIvel post snuG WItH is designed to mount dovetail indicators probes to height gages. Allows indicator to
dovetAIl IndIcAtor clAMp (such as our 708, 709, and 811 Indicators). be used to ensure that the down pressure on
PT22428. Will fit over spindles and posts By using a rod through the 3/16" (4.7mm) the part is the same as the original set zero
3/32-1/4" (2.4-6.3mm). Can be used directly mounting hole, it will also accommodate test position.
on our 252 Height Transfer Gage and our 657 indicators such as our 711 Indicator. Overall I. And j. collet AdApters
Magnetic Base Holders. It is frequently used length is approximately 5-1/4" (133mm), PT28315 (I.)– To be used with a 3/16"
on the 1/4" (6.3mm) rod of the Snug and Rod shank size is 3/8" (9.5mm). (4.7mm) diameter attachment for indicators
Unit PT22430. f. HeIGHt GAGe AttAcHMent such as PT22429 dovetail body clamp and

d. snuG And rod unIt 711-49. 1/8" x 5/16" (3 x 8mm) shank. This PT07104F long and short arm attachments.
PT22430. This unit consists of a snug is used for 250, 750, 751 Height Gages, and PT28316 (J.)– Swivel Post Collet Adapter, for
(PT18724) with two 4" (100mm) long rods, 995 Planer and Shaper Gage. use on any dovetail test indicator.
one a 1/4" (6.3mm) diameter, the other a Attachments for 708, 709, and 811 Test Indicators
3/8" (9.5mm) diameter. It is generally used Photo Key Part No. EDP Description
with an indicator attached to PT22428 A* PT22429 72441 Dovetail Body Clamp
Swivel Post Snug which slides onto the 1/4" B* PT11770A 71361 Tool Post Holder
(6.3mm) diameter rod. C* PT22428 72440 Swivel Post Snug with Clamp
D* PT22430 72442 Snug and Rod Unit
The 3/8" (9.5mm) rod will fit into the 252 DM PT27171 66457 Metric Snug and Rod Unit
and 657H Gage Holders. It also has the ability E PT26007 65101 Indicator Axial Support
to be held in chucks and adjusted to a wide F 711-49 52941 Height Gage Attachment
range of heights and diameters. G 711-35 52942
H PT99454 68713 Indicator Attachment, dovetail style
I PT28315 68847 Collet Adapter
J PT28316 68848
* Furnished with all sets having "C" in the catalog number
