deptH GAGes

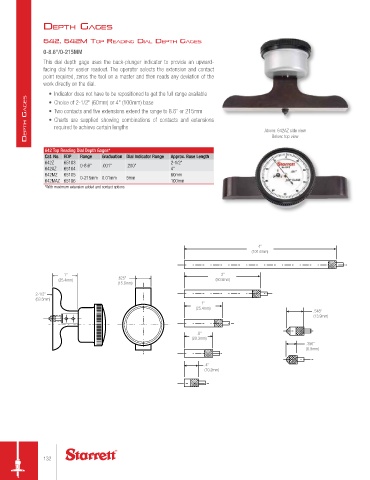

642, 642M top reAdInG dIAl deptH GAGes
0-8.6"/0-215MM
This dial depth gage uses the back-plunger indicator to provide an upward-
facing dial for easier readout. The operator selects the extension and contact
point required, zeros the tool on a master and then reads any deviation of the
work directly on the dial.

• Indicator does not have to be repositioned to get the full range available
Depth GaGes • Two contacts and five extensions extend the range to 8.6" or 215mm Above: 642AZ side view
• Choice of 2-1/2" (60mm) or 4" (100mm) base

• Charts are supplied showing combinations of contacts and extensions
required to achieve certain lengths

642 Top Reading Dial Depth Gages* Below: top view
Cat. No. EDP Range Graduation Dial Indicator Range Approx. Base Length
642Z 65103 0-8.6" .001" .200" 2-1/2"
642AZ 65104 4"
642MZ 65105 0-215mm 0.01mm 5mm 60mm
642MAZ 65106 100mm
*With maximum extension added and contact options

4"
(101.6mm)

1" 2"
(25.4mm) .625" (50.8mm)
(15.8mm)
2-1/2"
(63.5mm)
1"
(25.4mm)
.548"
(13.9mm)

.8"
(20.3mm)
.350"
(8.9mm)

.4"
(10.2mm)
