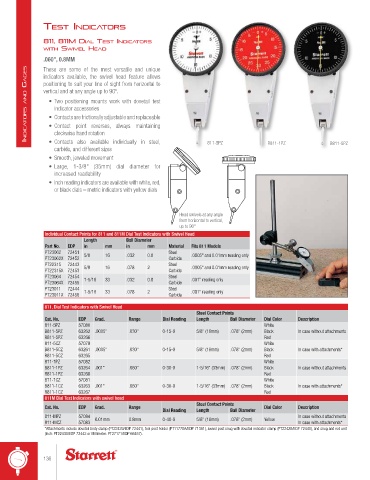

Page 136 - catalgo33

test IndIcAtors

811, 811M dIAl test IndIcAtors
WItH sWIvel HeAd
.060", 0.8MM
IndIca tors and GaGes positioning to suit your line of sight from horizontal to
These are some of the most versatile and unique
indicators available, the swivel head feature allows
vertical and at any angle up to 90º.
• Two positioning mounts work with dovetail test
indicator accessories
• Contacts are frictionally adjustable and replaceable
• Contact point reverses, always maintaining
clockwise hand rotation
• Contacts also available individually in steel,
carbide, and different sizes 811-5PZ R811-1PZ B811-5PZ
• Smooth, jeweled movement
• Large, 1-3/8" (35mm) dial diameter for
increased readability
• Inch reading indicators are available with white, red,
or black dials – metric indicators with yellow dials

Head swivels at any angle
from horizontal to vertical,
up to 90°
Individual Contact Points for 811 and 811M Dial Test Indicators with Swivel Head
Length Ball Diameter
Part No. EDP in mm in mm Material Fits 811 Models
PT23062 72451 5/8 16 .032 0.8 Steel .0005" and 0.01mm reading only
PT23062X 72452 Carbide
PT22315 72443 5/8 16 .078 2 Steel .0005" and 0.01mm reading only
PT22315X 72453 Carbide
PT23064 72454 1-5/16 33 .032 0.8 Steel .001" reading only
PT23064X 72455 Carbide
PT23011 72444 1-5/16 33 .078 2 Steel .001" reading only
PT23011X 72456 Carbide

811, Dial Test Indicators with Swivel Head
Steel Contact Points
Cat. No. EDP Grad. Range Dial Reading Length Ball Diameter Dial Color Description
811-5PZ 57080 White
B811-5PZ 63262 .0005" .030" 0-15-0 5/8" (16mm) .078" (2mm) Black In case without attachments
R811-5PZ 63266 Red
811-5CZ 57079 White
B811-5CZ 63261 .0005" .030" 0-15-0 5/8" (16mm) .078" (2mm) Black In case with attachments*
R811-5CZ 63265 Red
811-1PZ 57082 White
B811-1PZ 63264 .001" .060" 0-30-0 1-5/16" (33mm) .078" (2mm) Black In case without attachments
R811-1PZ 63268 Red
811-1CZ 57081 White
B811-1CZ 63263 .001" .060" 0-30-0 1-5/16" (33mm) .078" (2mm) Black In case with attachments*
R811-1CZ 63267 Red
811M Dial Test Indicators with swivel head
Steel Contact Points
Cat. No. EDP Grad. Range Dial Color Description
Dial Reading Length Ball Diameter
811-MPZ 57084 0.01mm 0.8mm 0-40-0 5/8" (16mm) .078" (2mm) Yellow In case without attachments
811-MCZ 57083 In case with attachments*
*Attachments include dovetail body clamp (PT22429/EDP 72441), tool post holder (PT11770A/EDP 71361), swivel post snug with dovetail indicator clamp (PT22428/EDP 72440), and snug and rod unit
(Inch: PT22430/EDP 72442 or Millimeter: PT27171/EDP 66457).

136
