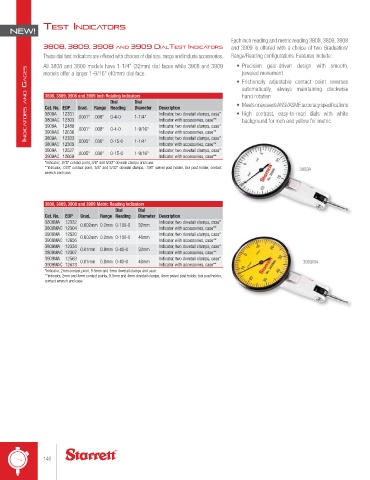

Page 140 - catalgo33

test IndIcAtors
New!
Each inch reading and metric reading 3808, 3809, 3908
3808, 3809, 3908 And 3909 dIAltest IndIcAtors and 3909 is offered with a choice of two Graduation/
These dial test indicators are offered with choices of dial size, range and include accessories. Range/Reading configurations. Features include:
• Precision gear-driven design with smooth,
All 3808 and 3809 models have 1-1/4" (32mm) dial faces while 3908 and 3909
IndIca tors and GaGes 3808, 3809, 3908 and 3909 Inch Reading Indicators Description • Frictionally adjustable contact point reverses
jeweled movement
models offer a larger 1-9/16" (40mm) dial face.
automatically, always maintaining clockwise
hand rotation
Dial
Dial
• Meets or exceeds ANSI/ASME accuracy specifications
Range Reading
Grad.
Cat. No. EDP
Diameter
• High contrast, easy-to-read dials with white
3808A
Indicator, two dovetail clamps, case*
12331
.0001" .008"
0-4-0
1-1/4"
3808AC 12303
Indicator with accessories, case**
background for inch and yellow for metric
12488
3908A
Indicator with accessories, case**
3908AC 12636
12333
3809A
Indicator, two dovetail clamps, case*
.0005" .030"
1-1/4"
0-15-0
Indicator with accessories, case**
3809AC 12305 .0001" .008" 0-4-0 1-9/16" Indicator, two dovetail clamps, case*
3909A 12527 .0005" .030" 0-15-0 1-9/16" Indicator, two dovetail clamps, case*
3909AC 12669 Indicator with accessories, case**
*Indicator, .078" contact point, 3/8" and 5/32" dovetail clamps and case
**Indicator, .078" contact point, 3/8" and 5/32" dovetail clamps, .156" swivel post holder, tool post holder, contact 3909A
wrench and case
3808, 3809, 3908 and 3909 Metric Reading Indicators
Dial Dial
Cat. No. EDP Grad. Range Reading Diameter Description
3808MA 12332 0.002mm 0.2mm 0-100-0 32mm Indicator, two dovetail clamps, case*
3808MAC 12304 Indicator with accessories, case**
3908MA 12520 0.002mm 0.2mm 0-100-0 40mm Indicator, two dovetail clamps, case*
3908MAC 12656 Indicator with accessories, case**
3809MA 12334 0.01mm 0.8mm 0-40-0 32mm Indicator, two dovetail clamps, case*
3809MAC 12307 Indicator with accessories, case**
3909MA 12563 0.01mm 0.8mm 0-40-0 40mm Indicator, two dovetail clamps, case* 3909MA
3909MAC 12673 Indicator with accessories, case**
*Indicator, 2mm contact point, 9.5mm and 4mm dovetail clamps and case
**Indicator, 2mm and 4mm contact points, 9.5mm and 4mm dovetail clamps, 4mm swivel post holder, tool post holder,
contact wrench and case
