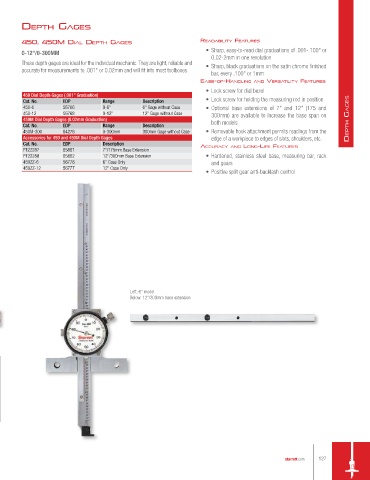

deptH GAGes

450, 450M dIAl deptH GAGes reAdAbIlIty feAtures
0-12"/0-300MM • Sharp, easy-to-read dial graduations of .001-.100" or
0.02-2mm in one revolution
These depth gages are ideal for the individual mechanic. They are light, reliable and • Sharp, black graduations on the satin chrome finished
accurate for measurements to .001" or 0.02mm and will fit into most toolboxes.
bar, every .100" or 1mm
eAse-of-HAndlInG And versAtIlIty feAtures
• Lock screw for dial bezel
450 Dial Depth Gages (.001" Graduation)
Cat. No. EDP Range Description • Lock screw for holding the measuring rod in position
450-6 56766 0-6" 6" Gage without Case • Optional base extensions of 7" and 12" (175 and
450-12 56768 0-12" 12" Gage without Case 300mm) are available to increase the base span on
450M Dial Depth Gages (0.02mm Graduation) both models Depth GaGes
Cat. No. EDP Range Description
450M-300 64276 0-300mm 300mm Gage without Case • Removable hook attachment permits readings from the
Accessories for 450 and 450M Dial Depth Gages edge of a workpiece to edges of slots, shoulders, etc.
Cat. No. EDP Description AccurAcy And lonG-lIfe feAtures
PT22287 65861 7"/175mm Base Extension
PT22288 65862 12"/300mm Base Extension • Hardened, stainless steel base, measuring bar, rack
450ZZ-6 56776 6" Case Only and gears
450ZZ-12 56777 12" Case Only
• Positive split gear anti-backlash control

Left: 6" model
Below: 12"/300mm base extension
