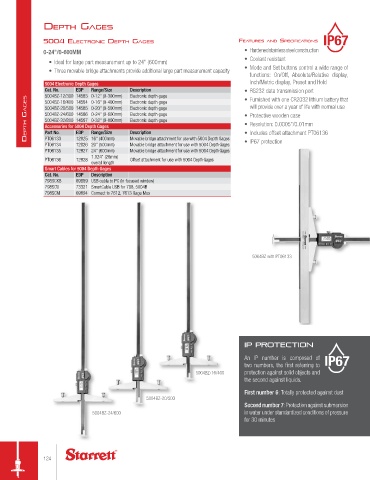

Page 124 - catalgo33

deptH GAGes

5004 electronIc deptH GAGes feAtures And specIfIcAtIons
0-24"/0-600MM • Hardened stainless steel construction
• Coolant resistant
• Ideal for large part measurement up to 24" (600mm)
• Three movable bridge attachments provide additional large part measurement capacity • Mode and Set buttons control a wide range of
functions: On/Off, Absolute/Relative display,
5004 Electronic Depth Gages Inch/Metric display, Preset and Hold
Cat. No. EDP Range/Size Description • RS232 data transmission port
5004BZ-12/300 14583 0-12" (0-300mm) Electronic depth gage • Furnished with one CR2032 lithium battery that
Depth GaGes 5004BZ-20/500 14585 0-20" (0-500mm) Electronic depth gage • Protective wooden case
5004BZ-16/400 14584 0-16" (0-400mm)
Electronic depth gage
will provide over a year of life with normal use
Electronic depth gage
5004BZ-24/600 14586 0-24" (0-600mm)
Electronic depth gage
5004BZ-32/800 14587 0-32" (0-800mm)
• Resolution: 0.0005"/0.01mm
Accessories for 5004 Depth Gages
Part No.
Movable bridge attachment for use with 5004 Depth Gages
12825 16" (400mm)
PT06133
• IP67 protection
Movable bridge attachment for use with 5004 Depth Gages
PT06134 EDP Range/Size Description • Includes offset attachment PT06136
12826 20" (500mm)
PT06135 12827 24" (600mm) Movable bridge attachment for use with 5004 Depth Gages
1.024" (26mm)
PT06136 12828 Offset attachment for use with 5004 Depth Gages
overall length
Smart Cables for 5004 Depth Gages
Cat. No. EDP Description
798SCKB 69889 USB cable to PC (In focused window)
798SCU 73321 SmartCable USB for 798, 5004B
798SCM 69894 Connect to 7612, 7613 Gage Mux

5004BZ with PT06133

IP Protection

An IP number is composed of
two numbers, the first referring to
5004BZ-16/400 protection against solid objects and
the second against liquids.
First number 6: Totally protected against dust
5004BZ-20/500
Second number 7: Protection against submersion
5004BZ-24/600 in water under standardized conditions of pressure
for 30 minutes
