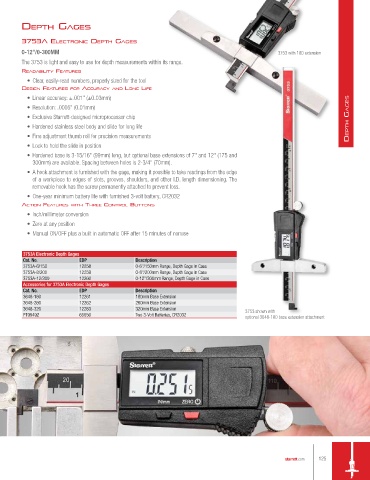

deptH GAGes

3753A electronIc deptH GAGes
0-12"/0-300MM 3753 with 180 extension
The 3753 is light and easy to use for depth measurements within its range.
reAdAbIlIty feAtures
• Clear, easily-read numbers, properly sized for the tool
desIGn feAtures for AccurAcy And lonG lIfe
• Linear accuracy: ±.001" (±0.03mm)
• Resolution: .0005" (0.01mm)
• Exclusive Starrett-designed microprocessor chip Depth GaGes
• Hardened stainless steel body and slide for long life
• Fine adjustment thumb roll for precision measurements
• Lock to hold the slide in position
• Hardened base is 3-15/16" (99mm) long, but optional base extensions of 7" and 12" (175 and
300mm) are available. Spacing between holes is 2-3/4" (70mm).
• A hook attachment is furnished with the gage, making it possible to take readings from the edge
of a workpiece to edges of slots, grooves, shoulders, and other I.D. length dimensioning. The
removable hook has the screw permanently attached to prevent loss.
• One-year minimum battery life with furnished 3-volt battery, CR2032
ActIon feAtures WItH tHree control buttons
• Inch/millimeter conversion
• Zero at any position
• Manual ON/OFF plus a built in automatic OFF after 15 minutes of nonuse

3753A Electronic Depth Gages
Cat. No. EDP Description
3753A-6/150 12258 0-6"/150mm Range, Depth Gage in Case
3753A-8/200 12259 0-8"/200mm Range, Depth Gage in Case
3753A-12/300 12260 0-12"/300mm Range, Depth Gage in Case
Accessories for 3753A Electronic Depth Gages
Cat. No. EDP Description
3648-180 12261 180mm Base Extension
3648-260 12262 260mm Base Extension
3648-320 12263 320mm Base Extension 3753 shown with
PT99492 65650 Two 3-Volt Batteries, CR2032 optional 3648-180 base extension attachment

starrett.com 125
