deptH GAGes

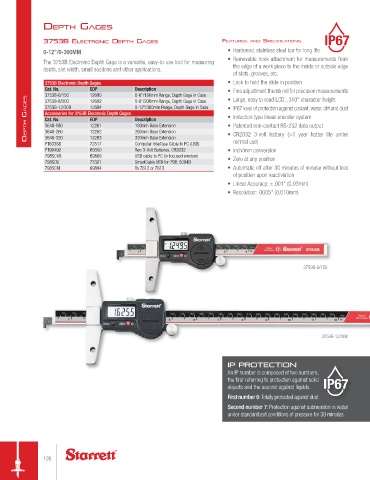

3753b electronIc deptH GAGes feAtures And specIfIcAtIons
0-12"/0-300MM • Hardened, stainless steel bar for long life
• Removable hook attachment for measurements from
The 3753B Electronic Depth Gage is a versatile, easy-to-use tool for measuring
depth, slot width, small sections and other applications. the edge of a work piece to the inside or outside edge
of slots, grooves, etc.
3753B Electronic Depth Gages • Lock to hold the slide in position
Cat. No. EDP Description • Fine adjustment thumb roll for precision measurements
3753B-6/150 12690 0-6"/150mm Range, Depth Gage in Case • Large, easy to read LCD, .310" character height
Depth GaGes 3753B-12/300 12694 0-12"/300mm Range, Depth Gage in Case • IP67 level of protection against coolant, water, dirt and dust
0-8"/200mm Range, Depth Gage in Case
12692
3753B-8/200
Accessories for 3753B Electronic Depth Gages
• Induction type linear encoder system
EDP
Description
Cat. No.
• Patented non-contact RS-232 data output
180mm Base Extension
12261
3648-180
3648-260
260mm Base Extension
12262
3648-320
normal use)
Computer Interface Cable to PC (USB)
72517
PT63388 12263 320mm Base Extension • CR2032 3-volt battery (>1 year batter life under
PT99492 65650 Two 3-Volt Batteries, CR2032 • Inch/mm conversion
798SCKB 69889 USB cable to PC (In focused window) • Zero at any position
798SCU 73321 SmartCable USB for 798, 5004B
798SCM 69894 To 7612 or 7613 • Automatic off after 30 minutes of nonuse without loss
of position upon reactiviation
• Linear Accuracy: ±.001" (0.03mm)
• Resolution: .0005" (0.010mm)

3753B-6/150

3753B-12/300

IP Protection
An IP number is composed of two numbers,
the first referring to protection against solid
objects and the second against liquids.
First number 6: Totally protected against dust
Second number 7: Protection against submersion in water
under standardized conditions of pressure for 30 minutes

126
