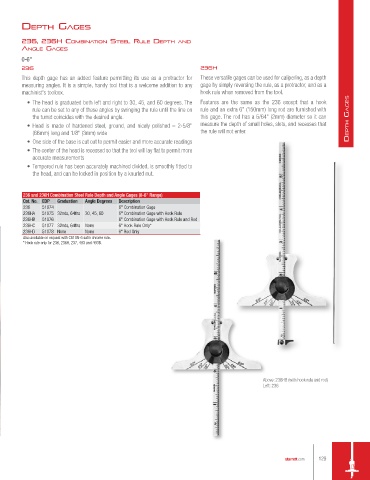

Page 129 - catalgo33

deptH GAGes

236, 236H coMbInAtIon steel rule deptH And
AnGle GAGes
0-6"
236 236H
This depth gage has an added feature permitting its use as a protractor for These versatile gages can be used for calipering, as a depth
measuring angles. It is a simple, handy tool that is a welcome addition to any gage by simply reversing the rule, as a protractor, and as a
machinist's toolbox. hook rule when removed from the tool.
• The head is graduated both left and right to 30, 45, and 60 degrees. The Features are the same as the 236 except that a hook
rule can be set to any of these angles by swinging the rule until the line on rule and an extra 6" (150mm) long rod are furnished with
the turret coincides with the desired angle. this gage. The rod has a 5/64" (2mm) diameter so it can Depth GaGes
• Head is made of hardened steel, ground, and nicely polished – 2-5/8" measure the depth of small holes, slots, and recesses that
(66mm) long and 1/8" (3mm) wide the rule will not enter.
• One side of the base is cut out to permit easier and more accurate readings
• The center of the head is recessed so that the tool will lay flat to permit more
accurate measurements
• Tempered rule has been accurately machined divided, is smoothly fitted to
the head, and can be locked in position by a knurled nut.

236 and 236H Combination Steel Rule Depth and Angle Gages (0-6" Range)
Cat. No. EDP Graduation Angle Degrees Description
236 51074 6" Combination Gage
236HA 51075 32nds, 64ths 30, 45, 60 6" Combination Gage with Hook Rule
236HB 51076 6" Combination Gage with Hook Rule and Rod
236HC 51077 32nds, 64ths None 6" Hook Rule Only*
236HD 51078 None None 6" Rod Only
Also available on request with C610N-6 satin chrome rule.
* Hook rule only for 236, 236H, 237, 493 and 493B.

Above: 236HB (with hook rule and rod)
Left: 236
