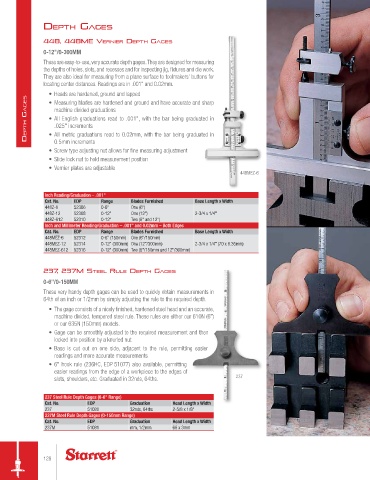

deptH GAGes

448, 448Me vernIer deptH GAGes
0-12"/0-300MM
These are easy-to-use, very accurate depth gages. They are designed for measuring
the depths of holes, slots, and recesses and for inspecting jig, fixtures and die work.
They are also ideal for measuring from a plane surface to toolmakers' buttons for
locating center distances. Readings are in .001" and 0.02mm.
• Heads are hardened, ground and lapped
Depth GaGes • All English graduations read to .001", with the bar being graduated in
• Measuring blades are hardened and ground and have accurate and sharp
machine divided graduations

.025" increments
• All metric graduations read to 0.02mm, with the bar being graduated in
0.5mm increments
• Screw type adjusting nut allows for fine measuring adjustment
• Slide lock nut to hold measurement position
• Vernier plates are adjustable
448MEZ-6

Inch Reading/Graduation – .001"
Cat. No. EDP Range Blades Furnished Base Length x Width
448Z-6 52306 0-6" One (6")
448Z-12 52308 0-12" One (12") 2-3/4 x 1/4"
448Z-612 52310 0-12" Two (6" and 12")
Inch and Millimeter Reading/Graduation – .001" and 0.02mm – Both Edges
Cat. No. EDP Range Blades Furnished Base Length x Width
448MEZ-6 52312 0-6" (150mm) One (6"/150mm)
448MEZ-12 52314 0-12" (300mm) One (12"/300mm) 2-3/4 x 1/4" (70 x 6.35mm)
448MEZ-612 52316 0-12" (300mm) Two (6"/150mm and 12"/300mm)

237, 237M steel rule deptH GAGes
0-6"/0-150MM

These very handy depth gages can be used to quickly obtain measurements in
64th of an inch or 1/2mm by simply adjusting the rule to the required depth.
• The gage consists of a nicely finished, hardened steel head and an accurate,
machine divided, tempered steel rule. These rules are either our 610N (6")
or our 635N (150mm) models.
• Gage can be smoothly adjusted to the required measurement and then
locked into position by a knurled nut
• Base is cut out on one side, adjacent to the rule, permitting easier
readings and more accurate measurements
• 6" hook rule (236HC, EDP 51077) also available, permitting
easier readings from the edge of a workpiece to the edges of
slots, shoulders, etc. Graduated in 32nds, 64ths. 237

237 Steel Rule Depth Gages (0-6" Range)
Cat. No. EDP Graduation Head Length x Width
237 51080 32nds, 64ths 2-5/8 x 1/8"
237M Steel Rule Depth Gages (0-150mm Range)
Cat. No. EDP Graduation Head Length x Width
237M 51081 mm, 1/2mm 66 x 3mm
