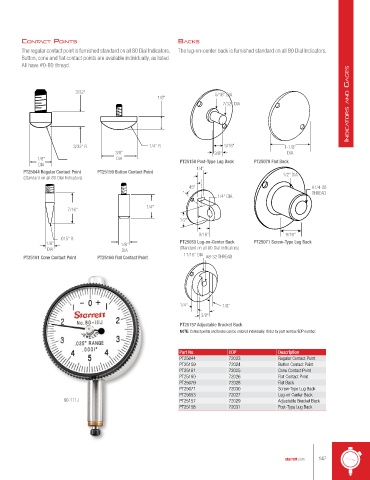

contAct poInts bAcKs
The regular contact point is furnished standard on all 80 Dial Indicators. The lug-on-center back is furnished standard on all 80 Dial Indicators.
Button, cone and flat contact points are available individually, as listed.
All have #0-80 thread.
IndIca tors and GaGes

3/32" 5/16" DIA
1/8"
7/32" DIA

3/32" R 1/4" R 5/16" 1-1/8"
3/8" 3/8" DIA
1/8" DIA PT25158 Post-Type Lug Back PT25079 Flat Back
DIA
PT25044 Regular Contact Point PT25159 Button Contact Point 1/4" 1/2" DIA
(Standard on all 80 Dial Indicators)
45º #1/4-28
THREAD
1/4" DIA
1/4"
7/16"
1/2"

9/16" 9/16"
.015" R
1/8" 1/8" PT25053 Lug-on-Center Back PT25071 Screw-Type Lug Back
DIA DIA (Standard on all 80 Dial Indicators)
PT25161 Cone Contact Point PT25160 Flat Contact Point 11/16" DIA #8-32 THREAD

1/4" 1/8"
3/8"
PT25157 Adjustable Bracket Back
NOTE: Contact points and backs can be ordered individually. Order by part number/EDP number.

Part No. EDP Description
PT25044 72023 Regular Contact Point
PT25159 72024 Button Contact Point
PT25161 72025 Cone Contact Point
PT25160 72026 Flat Contact Point
PT25079 72028 Flat Back
PT25071 72030 Screw-Type Lug Back
PT25053 72027 Lug-on Center Back
80-111J PT25157 72029 Adjustable Bracket Back
PT25158 72031 Post-Type Lug Back

starrett.com 147
