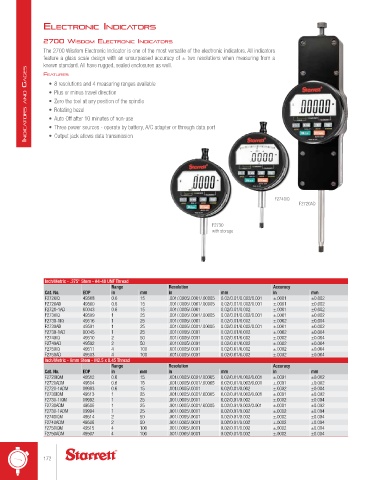

Page 172 - catalgo33

electronIc IndIcAtors

2700 WIsdoM electronIc IndIcAtors
The 2700 Wisdom Electronic Indicator is one of the most versatile of the electronic indicators. All indicators
feature a glass scale design with an unsurpassed accuracy of ± two resolutions when measuring from a
known standard. All have rugged , sealed enclosures as well.
IndIca tors and GaGes • Plus or minus travel direction
feAtures
• 8 resolutions and 4 measuring ranges available

• Zero the tool at any position of the spindle
• Rotating bezel
• Auto Off after 10 minutes of non-use
• Three power sources - operate by battery, A/C adapter or through data port
• Output jack allows data transmission

F2740IQ
F2720AD

F2730
with storage

Inch/Metric - .375" Stem - #4-48 UNF Thread
Range Resolution Accuracy
Cat. No. EDP in mm in mm in mm
F2720IQ 49508 0.6 15 .001/.0005/.0001/.00005 0.02/0.01/0.002/0.001 ±.0001 ±0.002
F2720AD 49500 0.6 15 .001/.0005/.0001/.00005 0.02/0.01/0.002/0.001 ±.0001 ±0.002
F2720-1AD 00043 0.6 15 .001/.0005/.0001 0.02/0.01/0.002 ±.0001 ±0.002
F2730IQ 49509 1 25 .001/.0005/.0001/.00005 0.02/0.01/0.002/0.001 ±.0001 ±0.002
F2730-1IQ 49516 1 25 .001/.0005/.0001 0.02/0.01/0.002 ±.0002 ±0.004
F2730AD 49501 1 25 .001/.0005/.0001/.00005 0.02/0.01/0.002/0.001 ±.0001 ±0.002
F2730-1AD 00045 1 25 .001/.0005/.0001 0.02/0.01/0.002 ±.0002 ±0.004
F2740IQ 49510 2 50 .001/.0005/.0001 0.02/0.01/0.002 ±.0002 ±0.004
F2740AD 49502 2 50 .001/.0005/.0001 0.02/0.01/0.002 ±.0002 ±0.004
F2750IQ 49511 4 100 .001/.0005/.0001 0.02/0.01/0.002 ±.0002 ±0.004
F2750AD 49503 4 100 .001/.0005/.0001 0.02/0.01/0.002 ±.0002 ±0.004
Inch/Metric - 8mm Stem - M2.5 x 0.45 Thread
Range Resolution Accuracy
Cat. No. EDP in mm in mm in mm
F2720IQM 49512 0.6 15 .001/.0005/.0001/.00005 0.02/0.01/0.002/0.001 ±.0001 ±0.002
F2720ADM 49504 0.6 15 .001/.0005/.0001/.00005 0.02/0.01/0.002/0.001 ±.0001 ±0.002
F2720-1ADM 09993 0.6 15 .001/.0005/.0001 0.02/0.01/0.002 ±.0002 ±0.004
F2730IQM 49513 1 25 .001/.0005/.0001/.00005 0.02/0.01/0.002/0.001 ±.0001 ±0.002
F2730-1IQM 09992 1 25 .001/.0005/.0001 0.02/0.01/0.002 ±.0002 ±0.004
F2730ADM 49505 1 25 .001/.0005/.0001/.00005 0.02/0.01/0.002/0.001 ±.0001 ±0.002
F2730-1ADM 09994 1 25 .001/.0005/.0001 0.02/0.01/0.002 ±.0002 ±0.004
F2740IQM 49514 2 50 .001/.0005/.0001 0.02/0.01/0.002 ±.0002 ±0.004
F2740ADM 49506 2 50 .001/.0005/.0001 0.02/0.01/0.002 ±.0002 ±0.004
F2750IQM 49515 4 100 .001/.0005/.0001 0.02/0.01/0.002 ±.0002 ±0.004
F2750ADM 49507 4 100 .001/.0005/.0001 0.02/0.01/0.002 ±.0002 ±0.004

172
