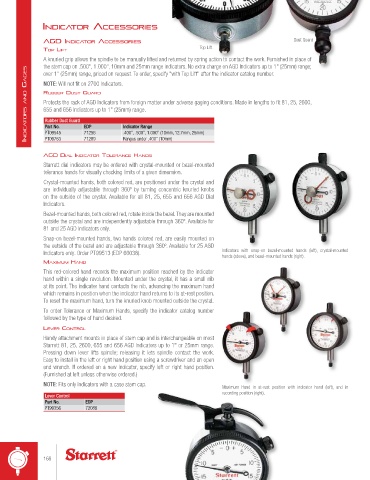

IndIcAtor AccessorIes

Dust Guard
AGd IndIcAtor AccessorIes
Top Lift
top lIft
A knurled grip allows the spindle to be manually lifted and returned by spring action to contact the work. Furnished in place of
the stem cap on .500", 1.000", 10mm and 25mm range indicators. No extra charge on AGD Indicators up to 1" (25mm) range;
IndIca tors and GaGes NOTE: Will not fit on 2700 Indicators. Indicator Range
over 1" (25mm) range, priced on request. To order, specify "with Top Lift" after the indicator catalog number.

rubber dust GuArd
Protects the rack of AGD Indicators from foreign matter under adverse gaging conditions. Made in lengths to fit 81, 25, 2600,
655 and 656 Indicators up to 1" (25mm) range.
Rubber Dust Guard
Part No.
EDP
.400", .500", 1.000" (10mm, 12.7mm, 25mm)
71256
PT09545
PT09763
Ranges under .400" (10mm)
71289
AGd dIAl IndIcAtor tolerAnce HAnds
Starrett dial indicators may be ordered with crystal-mounted or bezel-mounted
tolerance hands for visually checking limits of a given dimension.
Crystal-mounted hands, both colored red, are positioned under the crystal and
are individually adjustable through 360º by turning concentric knurled knobs
on the outside of the crystal. Available for all 81, 25, 655 and 656 AGD Dial
Indicators.
Bezel-mounted hands, both colored red, rotate inside the bezel. They are mounted
outside the crystal and are independently adjustable through 360º. Available for
81 and 25 AGD Indicators only.
Snap-on bezel-mounted hands, two hands colored red, are easily mounted on
the outside of the bezel and are adjustable through 360º. Available for 25 AGD
Indicators only. Order PT99513 (EDP 66038). Indicators with snap-on bezel-mounted hands (left), crystal-mounted
hands (above), and bezel-mounted hands (right).
MAxIMuM HAnd
This red-colored hand records the maximum position reached by the indicator
hand within a single revolution. Mounted under the crystal, it has a small nib
at its point. The indicator hand contacts the nib, advancing the maximum hand
which remains in position when the indicator hand returns to its at-rest position.
To reset the maximum hand, turn the knurled knob mounted outside the crystal.
To order Tolerance or Maximum Hands, specify the indicator catalog number
followed by the type of hand desired.
lever control
Handy attachment mounts in place of stem cap and is interchangeable on most
Starrett 81, 25, 2600, 655 and 656 AGD Indicators up to 1" or 25mm range.
Pressing down lever lifts spindle; releasing it lets spindle contact the work.
Easy to install in the left or right hand position using a screwdriver and an open
end wrench. If ordered on a new indicator, specify left or right hand position.
(Furnished at left unless otherwise ordered.)
NOTE: Fits only indicators with a case stem cap. Maximum Hand in at-rest position with indicator hand (left), and in
recording position (right).
Lever Control
Part No. EDP
PT99356 72088

168
