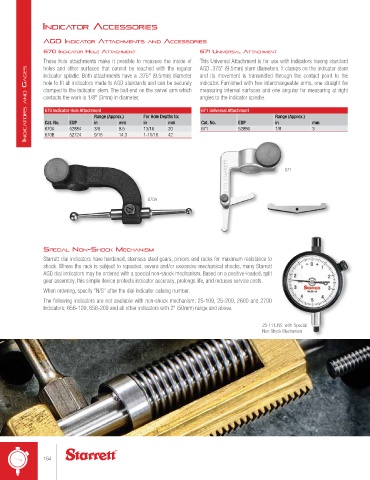

IndIcAtor AccessorIes

AGd IndIcAtor AttAcHMents And AccessorIes
670 IndIcAtor Hole AttAcHMent 671 unIversAl AttAcHMent
These hole attachments make it possible to measure the inside of This Universal Attachment is for use with indicators having standard
AGD .375" (9.5mm) stem diameters. It clamps on the indicator stem
holes and other surfaces that cannot be reached with the regular
IndIca tors and GaGes hole to fit all indicators made to AGD standards and can be securely indicator. Furnished with two interchangeable arms, one straight for
and its movement is transmitted through the contact point to the
indicator spindle. Both attachments have a .375" (9.5mm) diameter
clamped to the indicator stem. The ball end on the swivel arm which
measuring internal surfaces and one angular for measuring at right
angles to the indicator spindle.
contacts the work is 1/8" (3mm) in diameter.
671 Universal Attachment
670 Indicator Hole Attachment
Range (Approx.)
Range (Approx.)
For Hole Depths to:
in
mm
in
mm
EDP
mm
EDP
in
Cat. No.
Cat. No.
1/8
20
13/16
3
3/8
670A
52884
9.5
52886
671
42
9/16
52724
670B
1-11/16
14.3
671
670A
specIAl non-sHocK MecHAnIsM
Starrett dial indicators have hardened, stainless steel gears, pinions and racks for maximum resistance to
shock. Where the rack is subject to repeated, severe and/or excessive mechanical shocks, many Starrett
AGD dial indicators may be ordered with a special non-shock mechanism. Based on a positive-loaded, split
gear assembly, this simple device protects indicator accuracy, prolongs life, and reduces service costs.
When ordering, specify "N/S" after the dial indicator catalog number.
The following indicators are not available with non-shock mechanism: 25-109, 25-209, 2600 and 2700
Indicators; 656-109, 656-209 and all other indicators with 2" (50mm) range and above.

25-111JNS with Special
Non-Shock Mechanism

164
