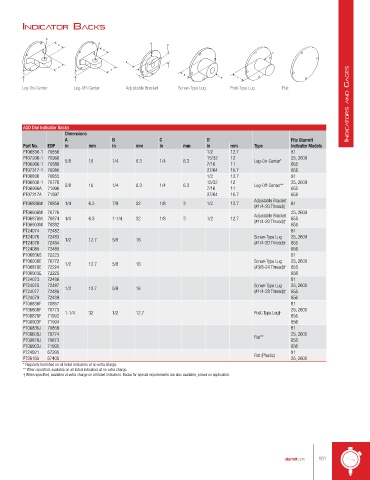

IndIcAtor bAcKs

IndIca tors and GaGes

Lug-On-Center Lug-Off-Center Adjustable Bracket Screw-Type Lug Post-Type Lug Flat

AGD Dial Indicator Backs
Dimensions
A B C D Fits Starrett
Part No. EDP in mm in mm in mm in mm Type Indicator Models
PT06836-1 70856 1/2 12.7 81
PT07206-1 70960 5/8 16 1/4 6.3 1/4 6.3 15/32 12 Lug-On-Center* 25, 2600
PT06966-1 70888 7/16 11 655
PT07317-1 70980 27/64 10.7 656
PT06836 70855 1/2 12.7 81
PT06608-1 70770 5/8 16 1/4 6.3 1/4 6.3 15/32 12 Lug-Off-Center** 25, 2600
PT06966A 71996 7/16 11 655
PT07317A 71997 27/64 10.7 656
Adjustable Bracket
PT06836M 70859 1/4 6.3 7/8 22 1/8 3 1/2 12.7 81
(#1/4-20 Thread)†
PT06608M 70776 Adjustable Bracket 25, 2600
PT06878M 70874 1/4 6.3 1-1/4 32 1/8 3 1/2 12.7 (#1/4-20 Thread)† 655
PT06903M 70882 656
PT24074 72482 81
PT24076 72483 1/2 12.7 5/8 16 Screw-Type Lug 25, 2600
PT24078 72484 (#1/4-20 Thread)† 655
PT24080 72485 656
PT06836S 72223 81
PT06608E 70772 1/2 12.7 5/8 16 Screw-Type Lug 25, 2600
PT06878E 72224 (#3/8-24 Thread)† 655
PT06903E 72225 656
PT24073 72486 81
PT24075 72487 1/2 12.7 5/8 16 Screw-Type Lug 25, 2600
PT24077 72488 (#1/4-28 Thread)† 655
PT24079 72489 656
PT06836F 70857 81
PT06608F 70773 1-1/4 32 1/2 12.7 Post-Type Lug† 25, 2600
PT06878F 71992 655
PT06903F 71994 656
PT06836J 70858 81
PT06608J 70774 Flat** 25, 2600
PT06878J 70873 655
PT06903J 71995 656
PT24921 67295 Flat (Plastic) 81
PT26160 67405 25, 2600
* Regularly furnished on all listed indicators at no extra charge.
** When specified, available on all listed indicators at no extra charge.
† When specified, available at extra charge on all listed indicators. Backs for special requirements are also available; priced on application.

starrett.com 161
