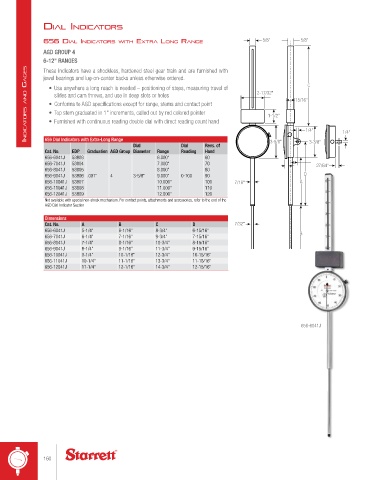

dIAl IndIcAtors

656 dIAl IndIcAtors WItH extrA lonG rAnGe 5/8" 5/8"
AGD GROUP 4
6-12" RANGES
IndIca tors and GaGes • Use anywhere a long reach is needed – positioning of stops, measuring travel of 2-17/32" 15/16" C
These indicators have a shockless, hardened steel gear train and are furnished with
jewel bearings and lug-on-center backs unless otherwise ordered.

slides and cam throws, and use in deep slots or holes
• Conforms to AGD specifications except for range, stems and contact point
• Top stem graduated in 1" increments, called out by red colored pointer
1-1/2"
• Furnished with continuous reading double dial with direct reading count hand

656 Dial Indicators with Extra-Long Range
3-3/8"
Dial Dial Revs. of 3-5/8" 1/4" 1/4"
Cat. No. EDP Graduation AGD Group Diameter Range Reading Hand
656-6041J 53803 6.000" 60
656-7041J 53804 7.000" 70 27/64"
656-8041J 53805 8.000" 80
656-9041J 53806 .001" 4 3-5/8" 9.000" 0-100 90 D
656-10041J 53807 10.000" 100 7/16" A
656-11041J 53808 11.000" 110
656-12041J 53809 12.000" 120
Not available with special non-shock mechanism. For contact points, attachments and accessories, refer to the end of the
AGD Dial Indicator Section
Dimensions
Cat. No. A B C D 7/32"
656-6041J 5-1/4" 6-1/16" 8-3/4" 6-15/16" B
656-7041J 6-1/4" 7-1/16" 9-3/4" 7-15/16"
656-8041J 7-1/4" 8-1/16" 10-3/4" 8-15/16"
656-9041J 8-1/4" 9-1/16" 11-3/4" 9-15/16"
656-10041J 9-1/4" 10-1/16" 12-3/4" 10-15/16"
656-11041J 10-1/4" 11-1/16" 13-3/4" 11-15/16"
656-12041J 11-1/4" 12-1/16" 14-3/4" 12-15/16"

656-6041J
