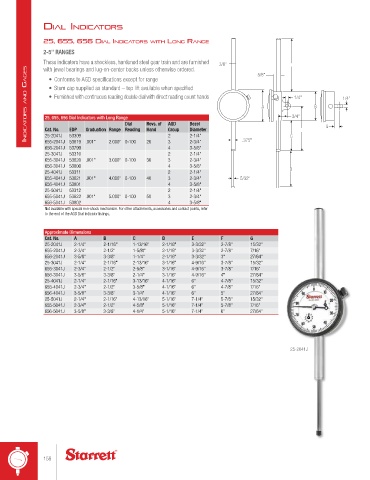

dIAl IndIcAtors

25, 655, 656 dIAl IndIcAtors WItH lonG rAnGe
2-5" RANGES
These indicators have a shockless, hardened steel gear train and are furnished 3/8" 5/8"
IndIca tors and GaGes 25, 655, 656 Dial Indicators with Long Range Revs. of AGD Bezel A 3/4" B 1/4"
with jewel bearings and lug-on-center backs unless otherwise ordered.
• Conforms to AGD specifications except for range
• Stem cap supplied as standard – top lift available when specified
• Furnished with continuous reading double dial with direct reading count hands
1/4"

Dial
EDP
Cat. No.
2
25-2041J
2-1/4"
53309
20
2-3/4"
655-2041J 53619
.001"
2.000" 0-100
3
3-5/8"
656-2041J 53799 Graduation Range Reading Hand Group Diameter .375" C G
4
25-3041J 53310 2 2-1/4"
655-3041J 53620 .001" 3.000" 0-100 30 3 2-3/4"
656-3041J 53800 4 3-5/8" D
25-4041J 53311 2 2-1/4"
655-4041J 53621 .001" 4.000" 0-100 40 3 2-3/4" 5/32"
656-4041J 53801 4 3-5/8"
25-5041J 53312 2 2-1/4"
655-5041J 53622 .001" 5.000" 0-100 50 3 2-3/4"
656-5041J 53802 4 3-5/8"
Not available with special non-shock mechanism. For other attachments, accessories and contact points, refer
to the end of the AGD Dial Indicator listings.
Approximate Dimensions
Cat. No. A B C D E F G
25-2041J 2-1/4" 2-1/16" 1-13/16" 2-1/16" 3-3/32" 2-7/8" 15/32"
655-2041J 2-3/4" 2-1/2" 1-5/8t" 2-1/16" 3-3/32" 2-7/8" 7/16"
656-2041J 3-5/8" 3-3/8" 1-1/4" 2-1/16" 3-3/32" 3" 27/64"
25-3041J 2-1/4" 2-1/16" 2-13/16" 3-1/16" 4-9/16" 3-7/8" 15/32"
655-3041J 2-3/4" 2-1/2" 2-5/8" 3-1/16" 4-9/16" 3-7/8" 7/16"
656-3041J 3-5/8" 3-3/8" 2-1/4" 3-1/16" 4-9/16" 4" 27/64"
25-4041J 2-1/4" 2-1/16" 3-13/16" 4-1/16" 6" 4-7/8" 15/32"
655-4041J 2-3/4" 2-1/2" 3-5/8" 4-1/16" 6" 4-7/8" 7/16"
656-4041J 3-5/8" 3-3/8" 3-1/4" 4-1/16" 6" 5" 27/64"
25-5041J 2-1/4" 2-1/16" 4-13/16" 5-1/16" 7-1/4" 5-7/8" 15/32"
655-5041J 2-3/4" 2-1/2" 4-5/8" 5-1/16" 7-1/4" 5-7/8" 7/16"
656-5041J 3-5/8" 3-3/8" 4-1/4" 5-1/16" 7-1/4" 6" 27/64"

25-2041J
