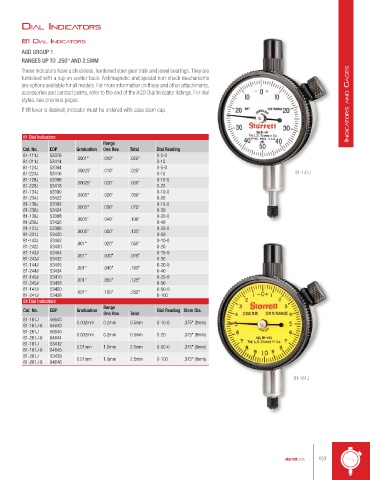

dIAl IndIcAtors

81 dIAl IndIcAtors
AGD GROUP 1
RANGES UP TO .250" AND 2.5MM
These Indicators have a shockless, hardened steel gear train and jewel bearings. They are
furnished with a lug-on-center back. Antimagnetic and special non-shock mechanisms
are options available for all models. For more information on these and other attachments,
accessories and contact points, refer to the end of the AGD Dial Indicator listings. For dial
styles, see previous pages. IndIca tors and GaGes
If lift lever is desired, indicator must be ordered with case stem cap.

81 Dial Indicators
Range
Cat. No. EDP Graduation One Rev. Total Dial Reading
81-111J 53378 .0001" .010" .025" 0-5-0
81-211J 53414 0-10
81-124J 53384 .00025" .010" .025" 0-5-0
81-224J 53416 0-10 81-141J
81-128J 53386 .00025" .020" .050" 0-10-0
81-228J 53418 0-20
81-134J 53390 .0005" .020" .050" 0-10-0
81-234J 53422 0-20
81-136J 53392 .0005" .030" .075" 0-15-0
81-236J 53424 0-30
81-138J 53398 .0005" .040" .100" 0-20-0
81-238J 53426 0-40
81-131J 53388 .0005" .050" .125" 0-25-0
81-231J 53420 0-50
81-142J 53402 .001" .020" .050" 0-10-0
81-242J 53430 0-20
81-143J 53404 .001" .030" .075" 0-15-0
81-243J 53432 0-30
81-144J 53408 .001" .040" .100" 0-20-0
81-244J 53434 0-40
81-145J 53410 .001" .050" .125" 0-25-0
81-245J 53436 0-50
81-141J 53400 .001" .100" .250" 0-50-0
81-241J 53428 0-100
81 Dial Indicators
Range
Cat. No. EDP Graduation Dial Reading Stem Dia.
One Rev. Total
81-161J 56043 0.002mm 0.2mm 0.5mm 0-10-0 .375" (8mm)
81-161J-8 64643
81-261J 56045 0.002mm 0.2mm 0.5mm 0-20 .375" (8mm)
81-261J-8 64644
81-181J 53412 0.01mm 1.0mm 2.5mm 0-50-0 .375" (8mm)
81-181J-8 64645
81-281J 53438 0.01mm 1.0mm 2.5mm 0-100 .375" (8mm)
81-281J-8 64646

81-161J
