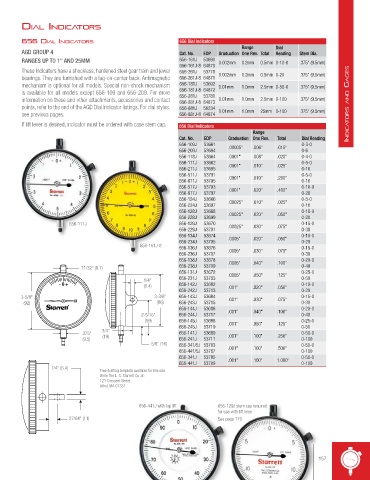

Page 157 - catalgo33

dIAl IndIcAtors

656 dIAl IndIcAtors 656 Dial Indicators
Range Dial
AGD GROUP 4 Cat. No. EDP Graduation One Rev. Total Reading Stem Dia.
RANGES UP TO 1" AND 25MM 656-161J 53690 0.002mm 0.2mm 0.5mm 0-10-0 .375" (9.5mm)
656-161J-8 64870
These indicators have a shockless, hardened steel gear train and jewel 656-261J 53779
bearings. They are furnished with a lug-on-center back. Antimagnetic 656-261J-8 64871 0.002mm 0.2mm 0.5mm 0-20 .375" (9.5mm)
mechanism is optional for all models. Special non-shock mechanism 656-181J 53692 0.01mm 1.0mm 2.5mm 0-50-0 .375" (9.5mm)
is available for all models except 656-109 and 656-209. For more 656-181J-8 64872
information on these and other attachments, accessories and contact 656-281J 53781 0.01mm 1.0mm 2.5mm 0-100 .375" (9.5mm)
656-281J-8 64873
points, refer to the end of the AGD Dial Indicator listings. For dial styles, 656-881J 56234 IndIca tors and GaGes
see previous pages. 656-881J-8 64874 0.01mm 1.0mm 25mm 0-100 .375" (9.5mm)
If lift lever is desired, indicator must be ordered with case stem cap. 656 Dial Indicators
Range
Cat. No. EDP Graduation One Rev. Total Dial Reading
656-109J 53661 .00005" .006" .015" 0-3-0
656-209J 53694 0-6
656-118J 53664 .0001" .008" .020" 0-4-0
656-111J 53662 .0001" .010" .025" 0-5-0
656-211J 53695 0-10
656-511J 53791 .0001" .010" .200" 0-5-0
656-611J 53795 0-10
656-517J 53793 .0001" .020" .400" 0-10-0
656-617J 53797 0-20
656-124J 53666 .00025" .010" .025" 0-5-0
656-224J 53697 0-10
656-128J 53668 .00025" .020" .050" 0-10-0
656-228J 53699 0-20
656-111J 656-129J 53670 .00025" .030" .075" 0-15-0
656-229J 53701 0-30
656-134J 53674 .0005" .020" .050" 0-10-0
656-234J 53705 0-20
656-161J-8 656-136J 53676 0-15-0
656-236J 53707 .0005" .030" .075" 0-30
656-138J 53678 .0005" .040" .100" 0-20-0
11/32" (8.7) 656-238J 53709 0-40
656-131J 53672 .0005" .050" .125" 0-25-0
1/4" 656-231J 53703 0-50
- 0 + (6.4) 656-142J 53682 .001" .020" .050" 0-10-0
656-242J 53713 0-20
3-5/8" 3-3/8" 656-143J 53684 .001" .030" .075" 0-15-0
(92) (86) 656-243J 53715 0-30
656-144J 53686 .001" .040" .100" 0-20-0
2-5/16" 656-244J 53717 0-40
(59) 656-145J 53688 0-25-0
656-245J 53719 .001" .050" .125" 0-50
3/4"
.375" 656-141J 53680 .001" .100" .250" 0-50-0
(9.5) (19) 656-241J 53711 0-100
5/8" (16) 656-341/5J 53783 0-50-0
656-441/5J 53787 .001" .100" .500" 0-100
656-341J 53785 .001" .100" 1.000" 0-50-0
656-441J 53789 0-100
1/4" (6.4)
Free drafting template available for this size.
Write The L. S. Starrett Co. at:
121 Crescent Street
Athol, MA 01331.

656-441J with top lift 656-129J stem cap required
for use with lift lever
27/64" (11) See page 170
