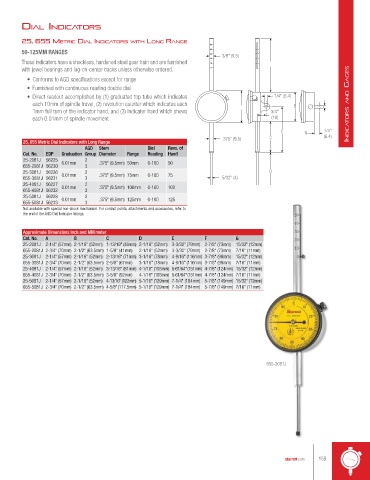

Page 159 - catalgo33

dIAl IndIcAtors

25, 655 MetrIc dIAl IndIcAtors WItH lonG rAnGe
50-125MM RANGES
3/8" (9.5)
These indicators have a shockless, hardened steel gear train and are furnished
with jewel bearings and lug-on-center backs unless otherwise ordered.
• Conforms to AGD specifications except for range
• Furnished with continuous reading double dial
• Direct readout accomplished by (1) graduated top tube which indicates 1/4" (6.4)
each 10mm of spindle travel, (2) revolution counter which indicates each B IndIca tors and GaGes
1mm full turn of the indicator hand, and (3) indicator hand which shows 3/4"
each 0.01mm of spindle movement (19)
F G 1/4"
.375" (9.5) C (6.4)
25, 655 Metric Dial Indicators with Long Range
AGD Stem Dial Revs. of
Cat. No. EDP Graduation Group Diameter Range Reading Hand
25-2081J 56225 0.01mm 2 .375" (9.5mm) 50mm 0-100 50
655-2081J 56230 3
25-3081J 56226 0.01mm 2 .375" (9.5mm) 75mm 0-100 75 D
655-3081J 56231 3 5/32" (4)
25-4081J 56227 0.01mm 2 .375" (9.5mm) 100mm 0-100 100
655-4081J 56232 3
25-5081J 56228 0.01mm 2 .375" (9.5mm) 125mm 0-100 125
655-5081J 56233 3
Not available with special non-shock mechanism. For contact points, attachments and accessories, refer to
the end of the AGD Dial Indicator listings.

Approximate Dimensions Inch and Millimeter
Cat. No. A B C D E F G
25-2081J 2-1/4" (57mm) 2-1/16" (52mm) 1-13/16" (46mm) 2-1/16" (52mm) 3-3/32" (79mm) 2-7/8" (73mm) 15/32" (12mm)
655-2081J 2-3/4" (70mm) 2-1/2" (63.5mm) 1-5/8" (41mm) 2-1/16" (52mm) 3-3/32" (79mm) 2-7/8" (73mm) 7/16" (11mm)
25-3081J 2-1/4" (57mm) 2-1/16" (52mm) 2-13/16" (71mm) 3-1/16" (78mm) 4-9/16" (116mm) 3-7/8" (98mm) 15/32" (12mm)
655-3081J 2-3/4" (70mm) 2-1/2" (63.5mm) 2-5/8" (67mm) 3-1/16" (78mm) 4-9/16" (116mm) 3-7/8" (98mm) 7/16" (11mm)
25-4081J 2-1/4" (57mm) 2-1/16" (52mm) 3-13/16" (81mm) 4-1/16" (103mm) 5-61/64" (151mm) 4-7/8" (124mm) 15/32" (12mm)
655-4081J 2-3/4" (70mm) 2-1/2" (63.5mm) 3-5/8" (92mm) 4-1/16" (103mm) 5-61/64" (151mm) 4-7/8" (124mm) 7/16" (11mm)
25-5081J 2-1/4" (57mm) 2-1/16" (52mm) 4-13/16" (122mm) 5-1/16" (129mm) 7-1/4" (184mm) 5-7/8" (149mm) 15/32" (12mm)
655-5081J 2-3/4" (70mm) 2-1/2" (63.5mm) 4-5/8" (117.5mm) 5-1/16" (129mm) 7-1/4" (184mm) 5-7/8" (149mm) 7/16" (11mm)

655-2081J
