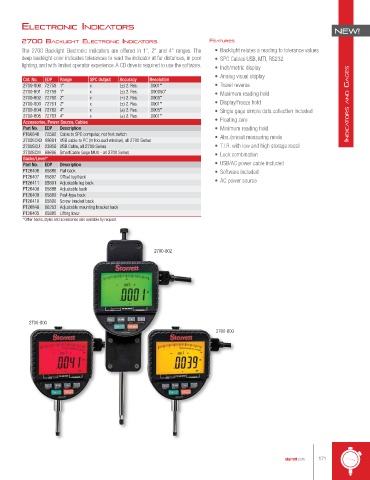

Page 171 - catalgo33

electronIc IndIcAtors
New!
2700 bAcKlIGHt electronIc IndIcAtors feAtures
The 2700 Backlight Electronic Indicators are offered in 1", 2" and 4" ranges. The • Backlight relates a reading to tolerance values
deep backlight color indicates tolerances to read the indicator at far distances, in poor • SPC Cables USB, MTI, RS232
lighting, and with limited operator experience. A CD drive is required to use the software. • Inch/metric display
• Analog visual display
Cat. No. EDP Range SPC Output Accuracy Resolution
2700-800 72758 1" x (±) 2. Res. .0001" • Travel reverse
2700-801 72759 1" x (±) 2. Res. .000050" • Maximum reading hold
2700-802 72760 2" x (±) 2. Res. .0005"
2700-803 72761 2" x (±) 2. Res. .0001" • Display/freeze hold IndIca tors and GaGes
2700-804 72762 4" x (±) 2. Res. .0005" • Single gage simple data collection included
2700-805 72763 4" x (±) 2. Res. .0001"
Accessories, Power Source, Cables • Floating zero
Part No. EDP Description • Minimum reading hold
PT60646 72592 Cable to SPC computer, not foot switch • Abs./preset measuring mode
2700SCKB 69891 USB cable to PC (In focused window), all 2700 Series
2700SCU 23956 USB Cable, all 2700 Series • T.I.R. with low and high storage recall
2700SCM 69896 SmartCable Gage MUX - all 2700 Series • Lock combination
Backs/Lever*
Part No. EDP Description • USB/AC power cable included
PT26406 65886 Flat back • Software included
PT26407 65887 Offset lug back • AC power source
PT26411 65891 Adjustable lug back
PT26408 65888 Adjustable back
PT26409 65889 Post-type back
PT26410 65890 Screw bracket back
PT26848 66293 Adjustable mounting bracket back
PT26405 65885 Lifting lever
*Other backs, styles and accessories also available by request.

2700-802

2700-800
2700-800

starrett.com 171
