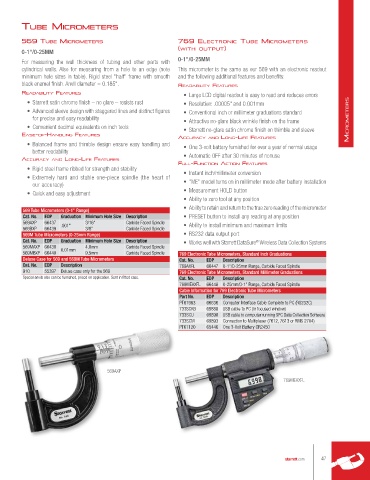

Page 47 - catalgo33

tube MIcroMeters

569 tube MIcroMeters 769 electronIc tube MIcroMeters
(WItH output)
0-1"/0-25MM
For measuring the wall thickness of tubing and other parts with 0-1"/0-25MM
cylindrical walls. Also for measuring from a hole to an edge (note This micrometer is the same as our 569 with an electronic readout
minimum hole sizes in table). Rigid steel "half" frame with smooth and the following additional features and benefits:
black enamel finish. Anvil diameter = 0.185". reAdAbIlIty feAtures

reAdAbIlIty feAtures • Large LCD digital readout is easy to read and reduces errors
• Starrett satin chrome finish – no glare – resists rust • Resolution: .00005" and 0.001mm
• Advanced sleeve design with staggered lines and distinct figures • Conventional inch or millimeter graduations standard
for precise and easy readability • Attractive no-glare black wrinkle finish on the frame MicroMeters
• Convenient decimal equivalents on inch tools • Starrett no-glare satin chrome finish on thimble and sleeve
eAse-of-HAndlInG feAtures
AccurAcy And lonG-lIfe feAtures
• Balanced frame and thimble design ensure easy handling and • One 3-volt battery furnished for over a year of normal usage
better readability
• Automatic OFF after 30 minutes of nonuse
AccurAcy And lonG-lIfe feAtures
full-functIon ActIon feAtures
• Rigid steel frame ribbed for strength and stability • Instant inch/millimeter conversion
• Extremely hard and stable one-piece spindle (the heart of
our accuracy) • "ME" model turns on in millimeter mode after battery installation
• Quick and easy adjustment • Measurement HOLD button
• Ability to zero tool at any position
• Ability to retain and return to the true zero reading of the micrometer
569 Tube Micrometers (0-1" Range)
Cat. No. EDP Graduation Minimum Hole Size Description • PRESET button to install any reading at any position
569AXP 66437 .001" 3/16" Carbide Faced Spindle • Ability to install minimum and maximum limits
569BXP 66439 3/8" Carbide Faced Spindle
569M Tube Micrometers (0-25mm Range) • RS232 data output port
Cat. No. EDP Graduation Minimum Hole Size Description • Works well with Starrett DataSure Wireless Data Collection Systems
®
569MAXP 66438 0.01mm 4.8mm Carbide Faced Spindle
569MBXP 66440 9.5mm Carbide Faced Spindle 769 Electronic Tube Micrometers, Standard Inch Graduations
Deluxe Case for 569 and 569M Tube Micrometers Cat. No. EDP Description
Cat. No. EDP Description 769AXFL 66447 0-1"/0-25mm Range, Carbide Faced Spindle
910 55397 Deluxe case only for the 569 769 Electronic Tube Micrometers, Standard Millimeter Graduations
Special anvils also can be furnished, priced on application. Sent in fitted case. Cat. No. EDP Description
769MEAXFL 66448 0-25mm/0-1" Range, Carbide Faced Spindle
Cable Information for 769 Electronic Tube Micrometers
Part No. EDP Description
PT61963 66636 Computer Interface Cable Complete to PC (RS232C)
733SCKB 69888 USB cable to PC (In focused window)
733SCU 69898 USB cable to computer running SPC Data Collection Software
733SCM 69893 Connection to Multiplexer (7612, 7613 or RMS 2704)
PT61120 65446 One 3-Volt Battery CR2450

569AXP
769MEAXFL
