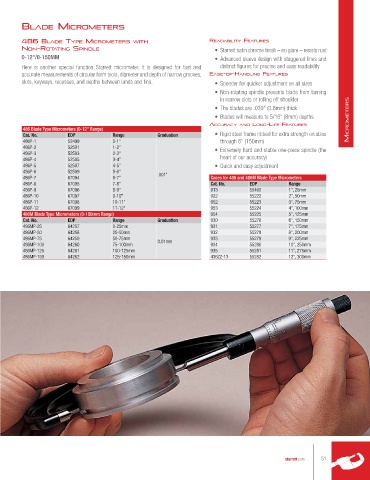

Page 51 - catalgo33

blAde MIcroMeters

486 blAde type MIcroMeters WItH reAdAbIlIty feAtures
non-rotAtInG spIndle • Starrett satin chrome finish – no glare – resists rust
0-12"/0-150MM • Advanced sleeve design with staggered lines and
Here is another special function Starrett micrometer. It is designed for fast and distinct figures for precise and easy readability
accurate measurements of circular form tools, diameter and depth of narrow grooves, eAse-of-HAndlInG feAtures
slots, keyways, recesses, and depths between lands and fins. • Speeder for quicker adjustment on all sizes
• Non-rotating spindle prevents blade from turning
in narrow slots or rolling off shoulder
• The blades are .030" (0.8mm) thick
• Blades will measure to 5/16" (8mm) depths MicroMeters
AccurAcy And lonG-lIfe feAtures
486 Blade Type Micrometers (0-12" Range)
Cat. No. EDP Range Graduation • Rigid steel frame ribbed for extra strength on sizes
486P-1 52499 0-1" through 6" (150mm)
486P-2 52501 1-2" • Extremely hard and stable one-piece spindle (the
486P-3 52503 2-3"
486P-4 52505 3-4" heart of our accuracy)
486P-5 52507 4-5" • Quick and easy adjustment
486P-6 52509 5-6" .001"
486P-7 67094 6-7" Cases for 486 and 486M Blade Type Micrometers
486P-8 67095 7-8" Cat. No. EDP Range
486P-9 67096 8-9" 913 55400 1", 25mm
486P-10 67097 9-10" 922 55222 2", 50mm
486P-11 67098 10-11" 952 55223 3", 75mm
486P-12 67099 11-12" 953 55224 4", 100mm
486M Blade Type Micrometers (0-150mm Range) 954 55225 5", 125mm
Cat. No. EDP Range Graduation 930 55276 6", 150mm
486MP-25 64257 0-25mm 931 55277 7", 175mm
486MP-50 64258 25-50mm 932 55278 8", 200mm
486MP-75 64259 50-75mm 0.01mm 933 55279 9", 225mm
486MP-100 64260 75-100mm 934 55280 10", 250mm
486MP-125 64261 100-125mm 935 55281 11", 275mm
486MP-150 64262 125-150mm 436ZZ-13 55282 12", 300mm
