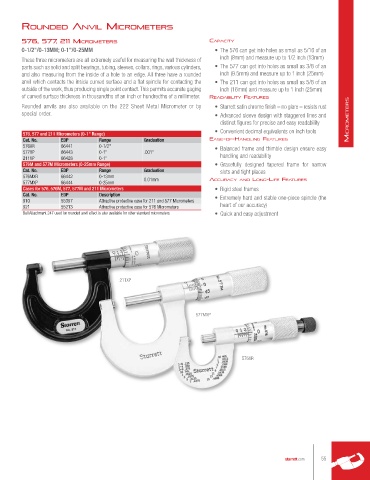

rounded AnvIl MIcroMeters

576, 577, 211 MIcroMeters cApAcIty
0-1/2"/0-13MM; 0-1"/0-25MM • The 576 can get into holes as small as 5/16 of an
These three micrometers are all extremely useful for measuring the wall thickness of inch (8mm) and measure up to 1/2 inch (13mm)
parts such as solid and split bearings, tubing, sleeves, collars, rings, various cylinders, • The 577 can get into holes as small as 3/8 of an
and also measuring from the inside of a hole to an edge. All three have a rounded inch (9.5mm) and measure up to 1 inch (25mm)
anvil which contacts the inside curved surface and a flat spindle for contacting the • The 211 can get into holes as small as 5/8 of an
outside of the work, thus producing single point contact. This permits accurate gaging inch (16mm) and measure up to 1 inch (25mm)
of curved surface thickness in thousandths of an inch or hundredths of a millimeter. reAdAbIlIty feAtures
Rounded anvils are also available on the 222 Sheet Metal Micrometer or by • Starrett satin chrome finish – no glare – resists rust
special order. • Advanced sleeve design with staggered lines and
distinct figures for precise and easy readability MicroMeters
• Convenient decimal equivalents on inch tools
576, 577 and 211 Micrometers (0-1" Range)
Cat. No. EDP Range Graduation eAse-of-HAndlInG feAtures
576XR 66441 0-1/2" • Balanced frame and thimble design ensure easy
577XP 66443 0-1" .001" handling and readability
211XP 66428 0-1"
576M and 577M Micrometers (0-25mm Range) • Gracefully designed tapered frame for narrow
Cat. No. EDP Range Graduation slots and tight places
576MXR 66442 0-13mm
577MXP 66444 0-25mm 0.01mm AccurAcy And lonG-lIfe feAtures
Cases for 576, 576M, 577, 577M and 211 Micrometers • Rigid steel frames
Cat. No. EDP Description • Extremely hard and stable one-piece spindle (the
910 55397 Attractive protective case for 211 and 577 Micrometers
921 55213 Attractive protective case for 576 Micrometers heart of our accuracy)
Ball Attachment 247 used for rounded anvil effect is also available for other standard micrometers. • Quick and easy adjustment

211XP

577MXP

576XR

starrett.com 55
