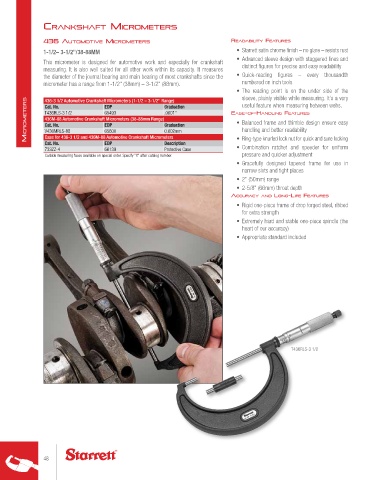

Page 48 - catalgo33

crAnKsHAft MIcroMeters

436 AutoMotIve MIcroMeters reAdAbIlIty feAtures
1-1/2– 3-1/2"/38-88MM • Starrett satin chrome finish – no glare – resists rust
• Advanced sleeve design with staggered lines and
This micrometer is designed for automotive work and especially for crankshaft
measuring. It is also well suited for all other work within its capacity. It measures distinct figures for precise and easy readability
the diameter of the journal bearing and main bearing of most crankshafts since the • Quick-reading figures – every thousandth
micrometer has a range from 1-1/2" (38mm) – 3-1/2" (88mm). numbered on inch tools
• The reading point is on the under side of the
sleeve, plainly visible while measuring. It's a very
MicroMeters Cat. No. EDP Graduation eAse-of-HAndlInG feAtures
436-3 1/2 Automotive Crankshaft Micrometers (1-1/2 – 3-1/2" Range)
useful feature when measuring between webs.
.0001"
T436RLS-3 1/2
65493
436M-88 Automotive Crankshaft Micrometers (38-88mm Range)
• Balanced frame and thimble design ensure easy
Graduation
EDP
Cat. No.
handling and better readability
0.002mm
V436MRLS-88
65600
Case for 436-3 1/2 and 436M-88 Automotive Crankshaft Micrometers
Cat. No. EDP Description • Ring-type knurled lock nut for quick and sure locking
• Combination ratchet and speeder for uniform
733ZZ-4 66139 Protective Case
Carbide measuring faces available on special order. Specify "X" after catalog number. pressure and quicker adjustment
• Gracefully designed tapered frame for use in
narrow slots and tight places
• 2" (50mm) range
• 2-5/8" (66mm) throat depth
AccurAcy And lonG-lIfe feAtures
• Rigid one-piece frame of drop forged steel, ribbed
for extra strength
• Extremely hard and stable one-piece spindle (the
heart of our accuracy)
• Appropriate standard included

T436RLS-3 1/2

48
