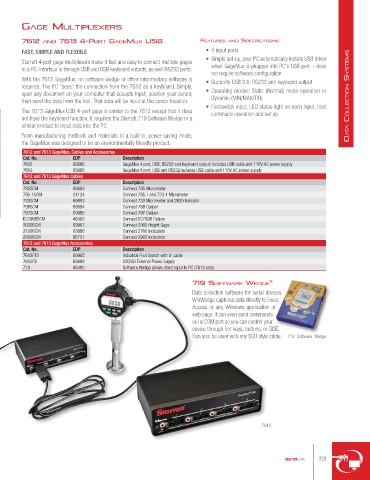

GAGe MultIplexers

7612 And 7613 4-port GAGeMux usb feAtures And specIfIcAtIons
FAST, SIMPLE AND FLEXIBLE • 4 input ports
• Simple set-up, your PC automatically installs USB driver
Starrett 4-port gage multiplexers make it fast and easy to connect multiple gages when GageMux is plugged into PC's USB port – does
to a PC. Interface is through USB and USB keyboard outputs, as well RS232 ports.
not require software configuration
With the 7612 GageMux, no software wedge or other intermediary software is • Supports USB 2.0, RS232 and keyboard output
required. The PC "sees" the connection from the 7612 as a keyboard. Simply,
open any document on your computer that accepts input, position your cursor, • Operating modes: Static (Normal) mode operation or Da t a ColleCtion SyStemS
then send the data from the tool. That data will be input at the cursor location. Dynamic (MIN/MAX/TIR)
• Footswitch input, LED status light on each input, host
The 7613 GageMux USB 4-port gage is similar to the 7612 except that it does command operation and set up
not have the keyboard function. It requires the Starrett 719 Software Wedge or a
similar product to input data into the PC.
From manufacturing methods and materials to a built-in, power-saving mode,
the GageMux was designed to be an environmentally friendly product.
7612 and 7613 GageMux, Cables and Accessories
Cat. No. EDP Description
7612 69886 GageMux 4 port, USB, RS232 and keyboard output; Includes USB cable and 110V AC power supply
7613 69885 GageMux 4 port, USB and RS232 includes USB cable and 110V AC power supply
7612 and 7613 GageMux Cables
Cat. No. EDP Description
795SCM 69892 Connect 795 Micrometer
795.1SCM 01124 Connect 795.1 and 733.1 Micrometer
733SCM 69893 Connect 733 Micrometer and 2600 Indicator
798SCM 69894 Connect 798 Caliper
797SCM 69895 Connect 797 Caliper
EC799BSCM 46000 Connect EC799B Caliper
2000SCM 69907 Connect 2000 Height Gage
2700SCM 69896 Connect 2700 Indicators
2900SCM 68751 Connect 2900 Indicators
7612 and 7613 GageMux Accessories
Cat. No. EDP Description
7612FTS 69905 Industrial Foot Switch with 6' cable
7612PS 69899 220/50 External Power Supply
719 66490 Software Wedge allows direct input to PC (7613 only)

719 softWAre WedGe ™
Data collection software for serial devices.
WinWedge captures data directly to Excel,
Access or any Windows application or
web page. It can even send commands
out a COM port so you can control your
device through hot keys, buttons, or DDE.
Can also be used with any SCU style cable. 719 Software Wedge

7612
