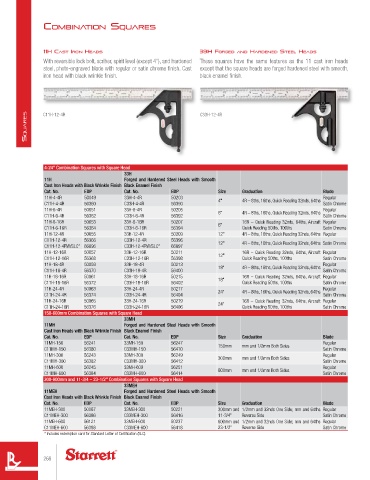

Page 268 - catalgo33

coMbInAtIon squAres

11H cAst Iron HeAds 33H forGed And HArdened steel HeAds
With reversible lock bolt, scriber, spirit level (except 4"), and hardened These squares have the same features as the 11 cast iron heads
steel, photo-engraved blade with regular or satin chrome finish. Cast except that the square heads are forged hardened steel with smooth,
iron head with black wrinkle finish. black enamel finish.

SquareS C11H-12-4R C33H-12-4R

4-24" Combination Squares with Square Head
33H
11H Forged and Hardened Steel Heads with Smooth
Cast Iron Heads with Black Wrinkle Finish Black Enamel Finish
Cat. No. EDP Cat. No. EDP Size Graduation Blade
11H-4-4R 50049 33H-4-4R 50203 4" 4R – 8ths, 16ths, Quick Reading 32nds, 64ths Regular
C11H-4-4R 56360 C33H-4-4R 56390 Satin Chrome
11H-6-4R 50051 33H-6-4R 50205 6" 4R – 8ths, 16ths, Quick Reading 32nds, 64ths Regular
C11H-6-4R 56362 C33H-6-4R 56392 Satin Chrome
11H-6-16R 50053 33H-6-16R 50207 6" 16R – Quick Reading 32nds, 64ths, Aircraft Regular
C11H-6-16R 56364 C33H-6-16R 56394 Quick Reading 50ths, 100ths Satin Chrome
11H-12-4R 50055 33H-12-4R 50209 12" 4R – 8ths, 16ths, Quick Reading 32nds, 64ths Regular
C11H-12-4R 56366 C33H-12-4R 56396 12" 4R – 8ths, 16ths, Quick Reading 32nds, 64ths Satin Chrome
C11H-12-4RW/SLC* 66896 C33H-12-4RW/SLC* 66897
11H-12-16R 50057 33H-12-16R 50211 12" 16R – Quick Reading 32nds, 64ths, Aircraft Regular
C11H-12-16R 56368 C33H-12-16R 56398 Quick Reading 50ths, 100ths Satin Chrome
11H-18-4R 50059 33H-18-4R 50213 18" 4R – 8ths, 16ths, Quick Reading 32nds, 64ths Regular
C11H-18-4R 56370 C33H-18-4R 56400 Satin Chrome
11H-18-16R 50061 33H-18-16R 50215 18" 16R – Quick Reading 32nds, 64ths, Aircraft Regular
C11H-18-16R 56372 C33H-18-16R 56402 Quick Reading 50ths, 100ths Satin Chrome
11H-24-4R 50063 33H-24-4R 50217 24" 4R – 8ths, 16ths, Quick Reading 32nds, 64ths Regular
C11H-24-4R 56374 C33H-24-4R 56404 Satin Chrome
11H-24-16R 50065 33H-24-16R 50219 24" 16R – Quick Reading 32nds, 64ths, Aircraft Regular
C11H-24-16R 56376 C33H-24-16R 56406 Quick Reading 50ths, 100ths Satin Chrome
150-600mm Combination Squares with Square Head
33MH
11MH Forged and Hardened Steel Heads with Smooth
Cast Iron Heads with Black Wrinkle Finish Black Enamel Finish
Cat. No. EDP Cat. No. EDP Size Graduation Blade
11MH-150 56241 33MH-150 56247 150mm mm and 1/2mm Both Sides Regular
C11MH-150 56380 C33MH-150 56410 Satin Chrome
11MH-300 56243 33MH-300 56249 300mm mm and 1/2mm Both Sides Regular
C11MH-300 56382 C33MH-300 56412 Satin Chrome
11MH-600 56245 33MH-600 56251 600mm mm and 1/2mm Both Sides Regular
C11MH-600 56384 C33MH-600 56414 Satin Chrome
300-600mm and 11-3/4 – 23-1/2" Combination Squares with Square Head
33MEH
11MEH Forged and Hardened Steel Heads with Smooth
Cast Iron Heads with Black Wrinkle Finish Black Enamel Finish
Cat. No. EDP Cat. No. EDP Size Graduation Blade
11MEH-300 50067 33MEH-300 50221 300mm and 1/2mm and 32nds One Side; mm and 64ths Regular
C11MEH-300 56386 C33MEH-300 56416 11-3/4" Reverse Side Satin Chrome
11MEH-600 56121 33MEH-600 50237 600mm and 1/2mm and 32nds One Side; mm and 64ths Regular
C11MEH-600 56388 C33MEH-600 56418 23-1/2" Reverse Side Satin Chrome
* Includes redemption card for Standard Letter of Certification (SLC).

268
