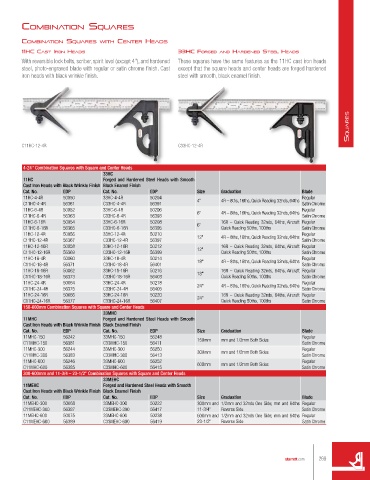

Page 269 - catalgo33

coMbInAtIon squAres

coMbInAtIon squAres WItH center HeAds
11Hc cAst Iron HeAds 33Hc forGed And HArdened steel HeAds
With reversible lock bolts, scriber, spirit level (except 4"), and hardened These squares have the same features as the 11HC cast iron heads
steel, photo-engraved blade with regular or satin chrome finish. Cast except that the square heads and center heads are forged hardened
iron heads with black wrinkle finish. steel with smooth, black enamel finish.

SquareS

C11HC-12-4R C33HC-12-4R

4-24" Combination Squares with Square and Center Heads
33HC
11HC Forged and Hardened Steel Heads with Smooth
Cast Iron Heads with Black Wrinkle Finish Black Enamel Finish
Cat. No. EDP Cat. No. EDP Size Graduation Blade
11HC-4-4R 50050 33HC-4-4R 50204 4" 4R – 8ths, 16ths, Quick Reading 32nds, 64ths Regular
C11HC-4-4R 56361 C33HC-4-4R 56391 Satin Chrome
11HC-6-4R 50052 33HC-6-4R 50206 6" 4R – 8ths, 16ths, Quick Reading 32nds, 64ths Regular
C11HC-6-4R 56363 C33HC-6-4R 56393 Satin Chrome
11HC-6-16R 50054 33HC-6-16R 50208 16R – Quick Reading 32nds, 64ths, Aircraft Regular
C11HC-6-16R 56365 C33HC-6-16R 56395 6" Quick Reading 50ths, 100ths Satin Chrome
11HC-12-4R 50056 33HC-12-4R 50210 12" 4R – 8ths, 16ths, Quick Reading 32nds, 64ths Regular
C11HC-12-4R 56367 C33HC-12-4R 56397 Satin Chrome
11HC-12-16R 50058 33HC-12-16R 50212 12" 16R – Quick Reading 32nds, 64ths, Aircraft Regular
C11HC-12-16R 56369 C33HC-12-16R 56399 Quick Reading 50ths, 100ths Satin Chrome
11HC-18-4R 50060 33HC-18-4R 50214 18" 4R – 8ths, 16ths, Quick Reading 32nds, 64ths Regular
C11HC-18-4R 56371 C33HC-18-4R 56401 Satin Chrome
11HC-18-16R 50062 33HC-18-16R 50216 18" 16R – Quick Reading 32nds, 64ths, Aircraft Regular
C11HC-18-16R 56373 C33HC-18-16R 56403 Quick Reading 50ths, 100ths Satin Chrome
11HC-24-4R 50064 33HC-24-4R 50218 24" 4R – 8ths, 16ths, Quick Reading 32nds, 64ths Regular
C11HC-24-4R 56375 C33HC-24-4R 56405 Satin Chrome
11HC-24-16R 50066 33HC-24-16R 50220 24" 16R – Quick Reading 32nds, 64ths, Aircraft Regular
C11HC-24-16R 56377 C33HC-24-16R 56407 Quick Reading 50ths, 100ths Satin Chrome
150-600mm Combination Squares with Square and Center Heads
33MHC
11MHC Forged and Hardened Steel Heads with Smooth
Cast Iron Heads with Black Wrinkle Finish Black Enamel Finish
Cat. No. EDP Cat. No. EDP Size Graduation Blade
11MHC-150 56242 33MHC-150 56248 150mm mm and 1/2mm Both Sides Regular
C11MHC-150 56381 C33MHC-150 56411 Satin Chrome
11MHC-300 56244 33MHC-300 56250 300mm mm and 1/2mm Both Sides Regular
C11MHC-300 56383 C33MHC-300 56413 Satin Chrome
11MHC-600 56246 33MHC-600 56252 600mm mm and 1/2mm Both Sides Regular
C11MHC-600 56385 C33MHC-600 56415 Satin Chrome
300-600mm and 11-3/4 – 23-1/2" Combination Squares with Square and Center Heads
33MEHC
11MEHC Forged and Hardened Steel Heads with Smooth
Cast Iron Heads with Black Wrinkle Finish Black Enamel Finish
Cat. No. EDP Cat. No. EDP Size Graduation Blade
11MEHC-300 50068 33MEHC-300 50222 300mm and 1/2mm and 32nds One Side; mm and 64ths Regular
C11MEHC-300 56387 C33MEHC-300 56417 11-3/4" Reverse Side Satin Chrome
11MEHC-600 50075 33MEHC-600 50238 600mm and 1/2mm and 32nds One Side; mm and 64ths Regular
C11MEHC-600 56389 C33MEHC-600 56419 23-1/2" Reverse Side Satin Chrome

starrett.com 269
