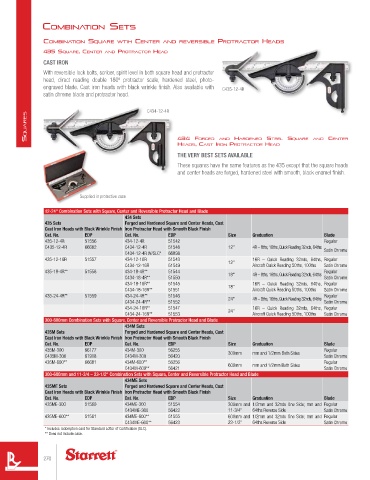

coMbInAtIon sets

coMbInAtIon squAre WtIH center And reversIble protrActor HeAds
435 squAre, center And protrActor HeAd
CAST IRON
With reversible lock bolts, scriber, spirit level in both square head and protractor
head, direct reading double 180º protractor scale, hardened steel, photo-
engraved blade. Cast iron heads with black wrinkle finish. Also available with C435-12-4R
satin chrome blade and protractor head.

C434-12-4R
SquareS

434 forGed And HArdened steel squAre And center
HeAds, cAst Iron protrActor HeAd
THE VERY BEST SETS AVAILABLE
These squares have the same features as the 435 except that the square heads
and center heads are forged, hardened steel with smooth, black enamel finish.

Supplied in protective case

12-24" Combination Sets with Square, Center and Reversible Protractor Head and Blade
434 Sets
435 Sets Forged and Hardened Square and Center Heads, Cast
Cast Iron Heads with Black Wrinkle Finish Iron Protractor Head with Smooth Black Finish
Cat. No. EDP Cat. No. EDP Size Graduation Blade
435-12-4R 51556 434-12-4R 51542 Regular
C435-12-4R 66682 C434-12-4R 51548 12" 4R – 8ths, 16ths, Quick Reading 32nds, 64ths Satin Chrome
C434-12-4R W/SLC* 66898
435-12-16R 51557 434-12-16R 51543 12" 16R – Quick Reading 32nds, 64ths, Regular
C434-12-16R 51549 Aircraft Quick Reading 50ths, 100ths Satin Chrome
435-18-4R** 51558 434-18-4R** 51544 18" 4R – 8ths, 16ths, Quick Reading 32nds, 64ths Regular
C434-18-4R** 51550 Satin Chrome
434-18-16R** 51545 18" 16R – Quick Reading 32nds, 64ths, Regular
C434-18-16R** 51551 Aircraft Quick Reading 50ths, 100ths Satin Chrome
435-24-4R** 51559 434-24-4R** 51546 24" 4R – 8ths, 16ths, Quick Reading 32nds, 64ths Regular
C434-24-4R** 51552 Satin Chrome
434-24-16R** 51547 24" 16R – Quick Reading 32nds, 64ths, Regular
C434-24-16R** 51553 Aircraft Quick Reading 50ths, 100ths Satin Chrome
300-600mm Combination Sets with Square, Center and Reversible Protractor Head and Blade
434M Sets
435M Sets Forged and Hardened Square and Center Heads, Cast
Cast Iron Heads with Black Wrinkle Finish Iron Protractor Head with Smooth Black Finish
Cat. No. EDP Cat. No. EDP Size Graduation Blade
435M-300 66177 434M-300 56255 300mm mm and 1/2mm Both Sides Regular
C435M-300 61918 C434M-300 56420 Satin Chrome
435M-600** 66681 434M-600** 56256 600mm mm and 1/2mm Both Sides Regular
C434M-600** 56421 Satin Chrome
300-600mm and 11-3/4 – 23-1/2" Combination Sets with Square, Center and Reversible Protractor Head and Blade
434ME Sets
435ME Sets Forged and Hardened Square and Center Heads, Cast
Cast Iron Heads with Black Wrinkle Finish Iron Protractor Head with Smooth Black Finish
Cat. No. EDP Cat. No. EDP Size Graduation Blade
435ME-300 51560 434ME-300 51554 300mm and 1/2mm and 32nds One Side; mm and Regular
C434ME-300 56422 11-3/4" 64ths Reverse Side Satin Chrome
435ME-600** 51561 434ME-600** 51555 600mm and 1/2mm and 32nds One Side; mm and Regular
C434ME-600** 56423 23-1/2" 64ths Reverse Side Satin Chrome
* Includes redemption card for Standard Letter of Certification (SLC).
** Does not include case.

270
