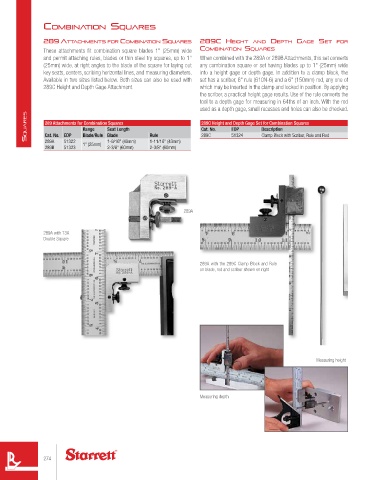

coMbInAtIon squAres

289 AttAcHMents for coMbInAtIon squAres 289c HeIGHt And deptH GAGe set for
These attachments fit combination square blades 1" (25mm) wide coMbInAtIon squAres
and permit attaching rules, blades or thin steel try squares, up to 1" When combined with the 289A or 289B Attachments, this set converts
(25mm) wide, at right angles to the blade of the square for laying out any combination square or set having blades up to 1" (25mm) wide
key seats, centers, scribing horizontal lines, and measuring diameters. into a height gage or depth gage. In addition to a clamp block, the
Available in two sizes listed below. Both sizes can also be used with set has a scriber, 6" rule (610N-6) and a 6" (150mm) rod, any one of
289C Height and Depth Gage Attachment. which may be inserted in the clamp and locked in position. By applying
the scriber, a practical height gage results. Use of the rule converts the
tool to a depth gage for measuring in 64ths of an inch. With the rod
used as a depth gage, small recesses and holes can also be checked.
SquareS 289 Attachments for Combination Squares Rule 289C Height and Depth Gage Set for Combination Squares

Seat Length
Range
Cat. No.
EDP
Description
Blade/Rule Blade
Cat. No. EDP
Clamp Block with Scriber, Rule and Rod
51324
289C
289A
51323
2-3/8" (60mm)
2-3/8" (60mm)
289B 51322 1" (25mm) 1-9/16" (40mm) 1-11/16" (43mm)

289A

289A with 13A
Double Square

289A with the 289C Clamp Block and Rule
on blade, rod and scriber shown on right

Measuring height

Measuring depth
