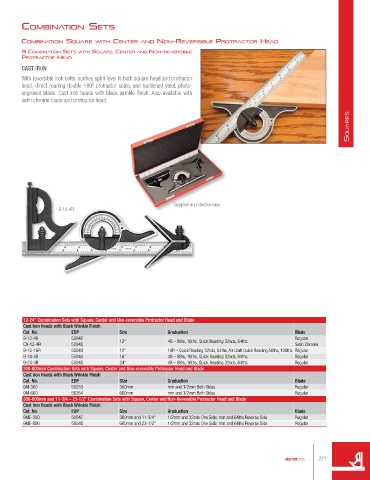

Page 271 - catalgo33

coMbInAtIon sets

coMbInAtIon squAre WItH center And non-reversIble protrActor HeAd
9 coMbInAtIon sets WItH squAre, center And non-reversIble
protrActor HeAd
CAST IRON
With reversible lock bolts, scriber, spirit level in both square head and protractor
head, direct reading double 180º protractor scale, and hardened steel, photo-
engraved blade. Cast iron heads with black wrinkle finish. Also available with
satin chrome blade and protractor head.

SquareS

Supplied in protective case
9-12-4R

12-24" Combination Sets with Square, Center and Non-reversible Protractor Head and Blade
Cast Iron Heads with Black Wrinkle Finish
Cat. No. EDP Size Graduation Blade
9-12-4R 50042 12" 4R – 8ths, 16ths, Quick Reading 32nds, 64ths Regular
C9-12-4R 50046 Satin Chrome
9-12-16R 50043 12" 16R – Quick Reading 32nds, 64ths, Air Craft Quick Reading 50ths, 100ths Regular
9-18-4R 50044 18" 4R – 8ths, 16ths, Quick Reading 32nds, 64ths Regular
9-24-4R 50045 24" 4R – 8ths, 16ths, Quick Reading 32nds, 64ths Regular
300-600mm Combination Sets with Square, Center and Non-reversible Protractor Head and Blade
Cast Iron Heads with Black Wrinkle Finish
Cat. No. EDP Size Graduation Blade
9M-300 56253 300mm mm and 1/2mm Both Sides Regular
9M-600 56254 600mm mm and 1/2mm Both Sides Regular
300-600mm and 11-3/4 – 23-1/2" Combination Sets with Square, Center and Non-Reversible Protractor Head and Blade
Cast Iron Heads with Black Wrinkle Finish
Cat. No. EDP Size Graduation Blade
9ME-300 50047 300mm and 11-3/4" 1/2mm and 32nds One Side; mm and 64ths Reverse Side Regular
9ME-600 50048 600mm and 23-1/2" 1/2mm and 32nds One Side; mm and 64ths Reverse Side Regular

starrett.com 271
