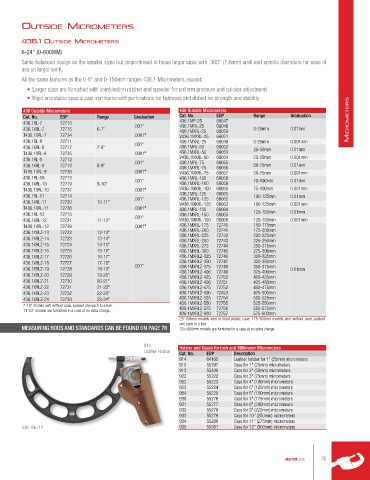

outsIde MIcroMeters

436.1 outsIde MIcroMeters
6-24" (0-600MM)
Same balanced design as the smaller sizes but proportioned to these larger sizes with .300" (7.6mm) anvil and spindle diameters for ease of
use on larger work.
All the same features as the 0-6" and 0-150mm ranges 436.1 Micrometers, except:
• Larger sizes are furnished with combination ratchet and speeder for uniform pressure and quicker adjustment
• Rigid and stable special cast iron frame with perforations for lightness and ribbed for strength and stability
436 Outside Micrometers 436 Outside Micrometers
Cat. No. EDP Range Graduation Cat. No. EDP Range Graduation MicroMeters
436.1RL-7 72710 .001" 436.1MP-25 68047
68048
436.1MRL-25
436.1XRL-7 72716 6-7" 436.1MXFL-25 68050 0-25mm 0.01mm
T436.1XRL-7 72734 .0001" V436.1MXRL-25 68051
436.1RL-8 72711 .001" 436.1MXRL-25 68049 0-25mm 0.001mm
436.1XRL-8 72717 7-8" 436.1MRL-50 68052 25-50mm 0.01mm
T436.1XRL-8 72735 .0001" 436.1MXRL-50 68053
436.1RL-9 72712 .001" V436.1MXRL-50 68054 25-50mm 0.001mm
68055
436.1MRL-75
436.1XRL-9 72718 8-9" 436.1MXRL-75 68056 50-75mm 0.01mm
T436.1XRL-9 72736 .0001" V436.1MXRL-75 68057 50-75mm 0.001mm
436.1RL-10 72713 .001" 436.1MRL-100 68058 75-100mm 0.01mm
436.1XRL-10 72719 9-10" 436.1MXRL-100 68059
T436.1XRL-10 72737 .0001" V436.1MXRL-100 68060 75-100mm 0.001mm
436.1RL-11 72714 .001" 436.1MRL-125 68061 100-125mm 0.01mm
68062
436.1MXRL-125
436.1XRL-11 72720 10-11" V436.1MXRL-125 68063 100-125mm 0.001mm
T436.1XRL-11 72738 .0001" 436.1MRL-150 68064
436.1RL-12 72715 .001" 436.1MXRL-150 68065 125-150mm 0.01mm
436.1XRL-12 72721 11-12" V436.1MXRL-150 68066 125-150mm 0.001mm
T436.1XRL-12 72739 .0001" 436.1MXRL-175 72740 150-175mm
436.1XRLZ-13 72722 12-13" 436.1MXRL-200 72741 175-200mm
72742
200-225mm
436.1MXRL-225
436.1XRLZ-14 72723 13-14" 436.1MXRL-250 72743 225-250mm
436.1XRLZ-15 72724 14-15" 436.1MXRL-275 72744 250-275mm
436.1XRLZ-16 72725 15-16" 436.1MXRL-300 72745 275-300mm
436.1XRLZ-17 72726 16-17" 436.1MXRLZ-325 72746 300-325mm
436.1XRLZ-18 72727 17-18" .001" 436.1MXRLZ-350 72747 325-350mm
436.1XRLZ-19 72728 18-19" 436.1MXRLZ-375 72748 350-375mm 0.01mm
375-400mm
72749
436.1MXRLZ-400
436.1XRLZ-20 72729 19-20" 436.1MXRLZ-425 72750 400-425mm
436.1XRLZ-21 72730 20-21" 436.1MXRLZ-450 72751 425-450mm
436.1XRLZ-22 72731 21-22" 436.1MXRLZ-475 72752 450-475mm
436.1XRLZ-23 72732 22-23" 436.1MXRLZ-500 72453 475-500mm
436.1XRLZ-24 72733 23-24" 436.1MXRLZ-525 72754 500-525mm
7-12" models sent without case, packed one each to a box. 436.1MXRLZ-550 72755 525-550mm
13-24" models are furnished in a case at no extra charge. 436.1MXRLZ-575 72756 550-575mm
436.1MXRLZ-600 72757 575-600mm
25-150mm models sent in fitted plastic case. 175-300mm models sent without case, packed
one each to a box.
MEASURING RODS AND STANDARDS CAN BE FOUND ON PAGE 76 325-600mm models are furnished in a case at no extra charge.
914 Holster and Cases for Inch and Millimeter Micrometers
Leather Holster Cat. No. EDP Description
914 64165 Leather holster for 1" (25mm) micrometers
910 55397 Case for 1" (25mm) micrometers
913 55400 Case for 2" (50mm) micrometers
922 55222 Case for 3" (75mm) micrometers
952 55223 Case for 4" (100mm) micrometers
953 55224 Case for 5" (125mm) micrometers
954 55225 Case for 6" (150mm) micrometers
930 55276 Case for 7" (175mm) micrometers
931 55277 Case for 8" (200mm) micrometers
932 55278 Case for 9" (225mm) micrometers
933 55279 Case for 10" (250mm) micrometers
934 55280 Case for 11" (275mm) micrometers
436.1RL-12 935 55281 Case for 12" (300mm) micrometers

starrett.com 35
