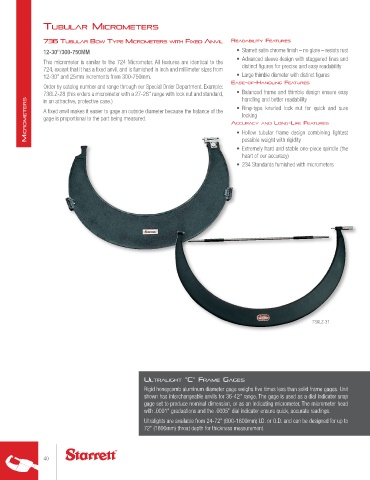

Page 40 - catalgo33

tubulAr MIcroMeters

736 tubulAr boW type MIcroMeters WItH fIxed AnvIl reAdAbIlIty feAtures
12-30"/300-750MM • Starrett satin chrome finish – no glare – resists rust
• Advanced sleeve design with staggered lines and
This micrometer is similar to the 724 Micrometer. All features are identical to the
724, except that it has a fixed anvil, and is furnished in inch and millimeter sizes from distinct figures for precise and easy readability
12-30" and 25mm increments from 300-750mm. • Large thimble diameter with distinct figures
eAse-of-HAndlInG feAtures
Order by catalog number and range through our Special Order Department. Example:
736LZ-28 (this orders a micrometer with a 27-28" range with lock nut and standard, • Balanced frame and thimble design ensure easy
handling and better readability
MicroMeters A fixed anvil makes it easier to gage an outside diameter because the balance of the AccurAcy And lonG-lIfe feAtures
in an attractive, protective case.)
• Ring-type knurled lock nut for quick and sure
locking
gage is proportional to the part being measured.
• Hollow tubular frame design combining lightest
possible weight with rigidity
• Extremely hard and stable one-piece spindle (the
heart of our accuracy)
• 234 Standards furnished with micrometers

736LZ-31

ultrAlIGHt "c" frAMe GAGes
Rigid honeycomb aluminum diameter gage weighs five times less than solid frame gages. Unit
shown has interchangeable anvils for 36-42" range. The gage is used as a dial indicator snap
gage set to produce nominal dimension, or as an indicating micrometer. The micrometer head
with .0001" graduations and the .0005" dial indicator ensure quick, accurate readings.
Ultralights are available from 24-72" (600-1800mm) I.D. or O.D. and can be designed for up to
72" (1800mm) throat depth for thickness measurement.
