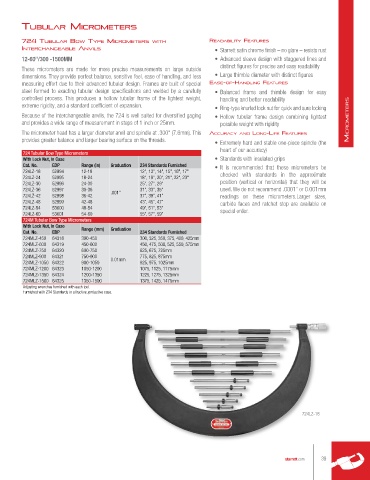

Page 39 - catalgo33

tubulAr MIcroMeters

724 tubulAr boW type MIcroMeters WItH reAdAbIlIty feAtures
IntercHAnGeAble AnvIls • Starrett satin chrome finish – no glare – resists rust
12-60"/300 -1500MM • Advanced sleeve design with staggered lines and

These micrometers are made for more precise measurements on large outside distinct figures for precise and easy readability
dimensions. They provide perfect balance, sensitive feel, ease of handling, and less • Large thimble diameter with distinct figures
measuring effort due to their advanced tubular design. Frames are built of special eAse-of-HAndlInG feAtures
steel formed to exacting tubular design specifications and welded by a carefully • Balanced frame and thimble design for easy
controlled process. This produces a hollow tubular frame of the lightest weight, handling and better readability
extreme rigidity, and a standard coefficient of expansion. • Ring-type knurled lock nut for quick and sure locking
Because of the interchangeable anvils, the 724 is well suited for diversified gaging • Hollow tubular frame design combining lightest
and provides a wide range of measurement in steps of 1 inch or 25mm. possible weight with rigidity MicroMeters
The micrometer head has a larger diameter anvil and spindle at .300" (7.6mm). This AccurAcy And lonG-lIfe feAtures
provides greater balance and larger bearing surface on the threads.
• Extremely hard and stable one-piece spindle (the
heart of our accuracy)
724 Tubular Bow Type Micrometers
With Lock Nut, In Case • Standards with insulated grips
Cat. No. EDP Range (in) Graduation 234 Standards Furnished • It is recommended that these micrometers be
724LZ-18 52994 12-18 12", 13", 14", 15", 16", 17" checked with standards in the approximate
724LZ-24 52995 18-24 18", 19", 20", 21", 22", 23"
724LZ-30 52996 24-30 25", 27", 29" position (vertical or horizontal) that they will be
724LZ-36 52997 30-36 .001" 31", 33", 35" used. We do not recommend .0001" or 0.001mm
724LZ-42 52998 36-42 37", 39", 41" readings on these micrometers.Larger sizes,
724LZ-48 52999 42-48 43", 45", 47" carbide faces and ratchet stop are available on
724LZ-54 53000 48-54 49", 51", 53" special order.
724LZ-60 53001 54-60 55", 57", 59"
724M Tubular Bow Type Micrometers
With Lock Nut, In Case Range (mm) Graduation
Cat. No. EDP 234 Standards Furnished
724MLZ-450 64318 300-450 300, 325, 350, 375, 400, 425mm
724MLZ-600 64319 450-600 450, 475, 500, 525, 550, 575mm
724MLZ-750 64320 600-750 625, 675, 725mm
724MLZ-900 64321 750-900 775, 825, 875mm
724MLZ-1050 64322 900-1050 0.01mm 925, 975, 1025mm
724MLZ-1200 64323 1050-1200 1075, 1125, 1175mm
724MLZ-1350 64324 1200-1350 1225, 1275, 1325mm
724MLZ-1500 64325 1350-1500 1375, 1425, 1475mm
Adjusting wrenches furnished with each tool.
Furnished with 234 Standards in attractive, protective case.

724LZ-18

starrett.com 39
