MIcroMeter sets

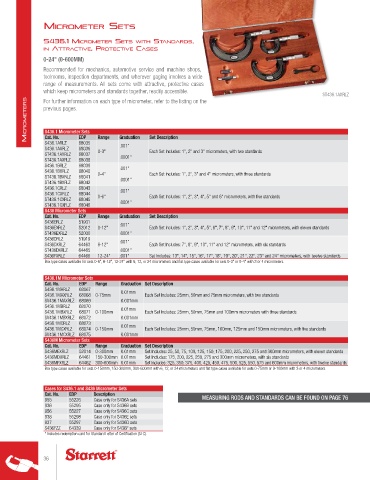

s436.1 MIcroMeter sets WItH stAndArds,
In AttrActIve, protectIve cAses
0-24" (0-600MM)
Recommended for mechanics, automotive service and machine shops,
toolrooms, inspection departments, and wherever gaging involves a wide
range of measurements. All sets come with attractive, protective cases
which keep micrometers and standards together, readily accessible.
ST436.1AXRLZ
MicroMeters previous pages.
For further information on each type of micrometer, refer to the listing on the

S436.1 Micrometer Sets
Cat. No.
68035
S436.1ARLZ EDP Range Graduation Set Description
S436.1AXRLZ 68036 0-3" .001" Each Set Includes: 1", 2" and 3" micrometers, with two standards
ST436.1AXRLZ 68037 .0001"
ST436.1AXFLZ 68038
S436.1BRLZ 68039 .001"
S436.1BXRLZ 68040 0-4" Each Set Includes: 1", 2", 3" and 4" micrometers, with three standards
ST436.1BXRLZ 68041
ST436.1BXFLZ 68042 .0001"
S436.1CRLZ 68043 .001"
S436.1CXRLZ 68044
ST436.1CXRLZ 68045 0-6" .0001" Each Set Includes: 1", 2", 3", 4", 5" and 6" micrometers, with five standards
ST436.1CXFLZ 68046
S436 Micrometer Sets
Cat. No. EDP Range Graduation Set Description
S436ERLZ 51931 .001"
S436EXRLZ 52012 0-12" Each Set Includes: 1", 2", 3", 4", 5", 6", 7", 8", 9", 10", 11" and 12" micrometers, with eleven standards
ST436EXRLZ 52030 .0001"
S436DRLZ 51919 .001"
S436DXRLZ 64463 6-12" Each Set Includes: 7", 8", 9", 10", 11" and 12" micrometers, with six standards
ST436DXRLZ 64465 .0001"
S436FXRLZ 64466 12-24" .001" Set Includes: 13", 14", 15", 16", 17", 18", 19", 20", 21", 22", 23" and 24" micrometers, with twelve standards
Box type cases available for sets 0-6", 6-12", 12-24" with 6, 12, or 24 micrometers and flat type cases available for sets 0-3" or 0-4" with 3 or 4 micrometers.

S436.1M Micrometer Sets
Cat. No. EDP Range Graduation Set Description
S436.1MARLZ 68067 0.01mm
S436.1MAXRLZ 68068 0-75mm Each Set Includes: 25mm, 50mm and 75mm micrometers, with two standards
SV436.1MAXRLZ 68069 0.001mm
S436.1MBRLZ 68070 0.01mm
S436.1MBXRLZ 68071 0-100mm Each Set Includes: 25mm, 50mm, 75mm and 100mm micrometers with three standards
SV436.1MBXRLZ 68072 0.001mm
S436.1MCRLZ 68073 0.01mm
S436.1MCXRLZ 68074 0-150mm Each Set Includes: 25mm, 50mm, 75mm, 100mm, 125mm and 150mm micrometers, with five standards
SV436.1MCXRLZ 68075 0.001mm
S436M Micrometer Sets
Cat. No. EDP Range Graduation Set Description
S436MEXRLZ 52014 0-300mm 0.01mm Set Includes: 25, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275 and 300mm micrometers, with eleven standards
S436MDXRLZ 64461 150-300mm 0.01mm Set Includes: 175, 200, 225, 250, 275 and 300mm micrometers, with six standards
S436MFXRLZ 64462 300-600mm 0.01mm Set Includes: 325, 350, 375, 400, 425, 450, 475, 500, 525, 550, 575 and 600mm micrometers, with twelve standards
Box type cases available for sets 0-150mm, 150-300mm, 300-600mm with 6, 12, or 24 micrometers and flat type cases available for sets 0-75mm or 0-100mm with 3 or 4 micrometers.

Cases for S436.1 and S436 Micrometer Sets
Cat. No. EDP Description
955 55226 Case only for S436A sets MEASURING RODS AND STANDARDS CAN BE FOUND ON PAGE 76
936 55295 Case only for S436B sets
956 55227 Case only for S436C sets
938 55298 Case only for S436E sets
937 55297 Case only for S436D sets
S436FZZ 64339 Case only for S436F sets
* Includes redemption card for Standard Letter of Certification (SLC).
