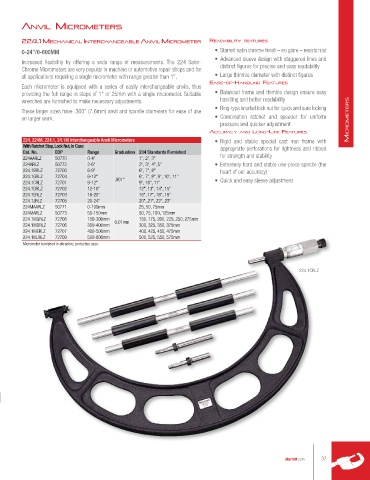

P. 37

AnvIl MIcroMeters

        224.1 MecHAnIcAl IntercHAnGeAble AnvIl MIcroMeter             reAdAbIlIty feAtures
        0-24"/0-600MM                                                   •  Starrett satin chrome finish – no glare – resists rust
                                                                        •  Advanced sleeve design with staggered lines and
        Increased flexibility by offering a wide range of measurements.  The 224 Satin-
        Chrome Micrometers are very popular in machine or automotive repair shops and for   distinct figures for precise and easy readability
        all applications requiring a single micrometer with range greater than 1".  •  Large thimble diameter with distinct figures
                                                                      eAse-of-HAndlInG feAtures
        Each micrometer is equipped with a series of easily interchangeable anvils, thus
        providing the full range in steps of 1" or 25mm with a single micrometer. Suitable   •  Balanced frame and thimble design ensure easy
        wrenches are furnished to make necessary adjustments.             handling and better readability
                                                                        •  Ring-type knurled lock nut for quick and sure locking
        These larger sizes have .300" (7.6mm) anvil and spindle diameters for ease of use
        on larger work.                                                 •  Combination ratchet and speeder for uniform   MicroMeters
                                                                          pressure and quicker adjustment
                                                                      AccurAcy And lonG-lIfe feAtures
         224, 224M, 224.1, 24.1M Interchangeable Anvil Micrometers      •  Rigid and stable special cast iron frame with
         With Ratchet Stop, Lock Nut, In Case                             appropriate perforations for lightness and ribbed
         Cat. No.  EDP        Range    Graduation 234 Standards Furnished  for strength and stability
         224AARLZ  50770      0-4"             1", 2", 3"
         224ARLZ   50772      2-6"             2", 3", 4", 5"           •  Extremely hard and stable one-piece spindle (the
         224.1BRLZ  72700     6-9"             6", 7", 8"                 heart of our accuracy)
         224.1GRLZ  72704     6-12"            6", 7", 8", 9", 10", 11"
         224.1CRLZ  72701     9-12"    .001"   9", 10", 11"             •  Quick and easy sleeve adjustment
         224.1DRLZ  72702     12-16"           12", 13", 14", 15"
         224.1ERLZ  72703     16-20"           16", 17", 18", 19"
         224.1JRLZ  72705     20-24"           20", 21", 22", 23"
         224MAARLZ  50771     0-100mm          25, 50, 75mm
         224MARLZ  50773      50-150mm         50, 75, 100, 125mm
         224.1MGRLZ  72708    150-300mm  0.01mm  150, 175, 200, 225, 250, 275mm
         224.1MDRLZ  72706    300-400mm        300, 325, 350, 375mm
         224.1MERLZ  72707    400-500mm        400, 425, 450, 475mm
         224.1MJRLZ  72709    500-600mm        500, 525, 550, 575mm
         Micrometer furnished in attractive, protective case.



                                                                                                    224.1CRLZ





































                                                                                               starrett.com  37
